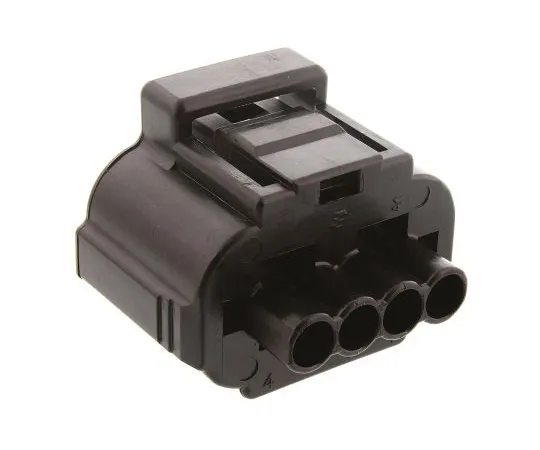

63-5013-80 TE Connectivity SSC Series, 1 Row 4 Way Cable Mount Plug Housing 184046-1
Electronic/Electrical Parts and Controll Equipments

63-5013-80 TE Connectivity SSC Series, 1 Row 4 Way Cable Mount Plug Housing 184046-1

model: 63-5013-80
brand: TE Connectivity

Product Description

Product Model: 63-5013-80Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5013-80
Product Brand: TE Connectivity

Features

  • TE Connectivity SSC (Sealed Sensor Connector) System. The SSC (Sealed Sensor Connector) System has been developed to meet the severe requirements of the automotive under hood connector environment, also suitable for many different severe environmental connector applications. Wire sealing for the SSC (Sealed Sensor Connector) System is achieved by means of a wire seal (available seperately) which is inserted on the wire and crimped in the insulation support of the contact simultaneously with the contact. Robust housing, glass filled PBT for high temperature applications Terminal Position Assurance (TPA) to prevent contact backout Damage protected Internal silicone seal interface High density 5mm centerline spacing Loud audible Click during mating

Spec

  • Quantity:1piece
  • Number of Contacts : 4
  • Type : Housing
  • G***er : Male
  • Number of Rows : 1
  • Current Rating : 10A
  • Mounting Type : Cable Mount
  • Series : SSC
  • Colour : Black
  • Height : 24.8mm
  • Width : 32.6mm
  • Depth : 27.6mm
  • Minimum Operating Temperature : -40°C
  • CODE No.:718-7303
