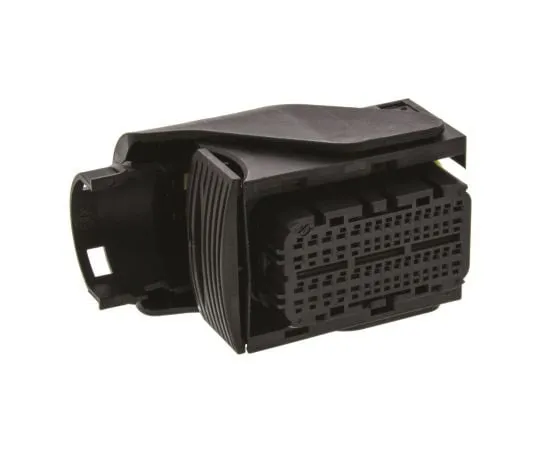

63-5013-30 TE Connectivity Micro Quadlock System Series, 4 Row 60 Way Cable Mount Socket Housing 284742-1
model:
63-5013-30
brand:
TE Connectivity
Product Description
Product Model: 63-5013-30Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5013-30
Product Brand: TE Connectivity
Features
- TE Connectivity MQS (Micro Quadlock System) Connector Housings. The MQS 2.54 mm interconnection system offers high density connectors with a compact, robust construction which is able to meet high functional requirements in automotive applications. These MQS pin and receptacle housings are ***d to ho*** MQS contacts. Hybrid versions of these MQS housings are available which are designed to ho*** a combination of contact types. The stainless steel locking lances on the contacts achieve a high primary terminal locking force securing the contacts firmly in the connector housing. Sealed versions of these housings are available for waterproof protection and additional wire seals can be purchased separately. Versions of these MQS connector housings are available with polarization and keying options to prevent mismating. Extra accessories including covers, levers and retainer housings are also available separately for some of these connector housings. Features and Benefits. High density, compact design Integral primary terminal locking force Sealed versions for waterproof connection Polarization and keying to prevent mismating. Product Application Information. These MQS 2.54 mm connectors are designed to meet the demanding requirements of automotive applications. Applications include powertrain systems, safety and security systems, convenience, driver information and body and chassis systems
Spec
- Quantity:1piece
- Number of Contacts : 60
- Type : Housing
- G***er : Female
- Number of Rows : 4
- Mounting Type : Cable Mount
- Series : Micro Quadlock System
- Colour : Black, Brown
- Height : 80mm
- Width : 46mm
- Depth : 74.4mm
- Housing Material : Nylon
- CODE No.:718-6785
