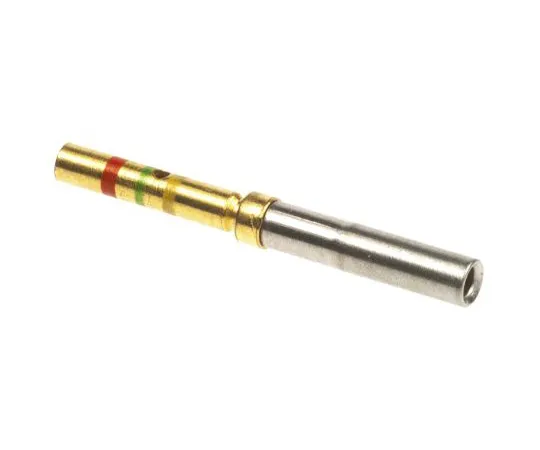

63-5013-13 TE Connectivity AMPLIMITE 90 Series Series size 22 Female Crimp D-sub Connector Contact, Gold over Nickel Plated 204351-1
model:
63-5013-13
brand:
TE Connectivity
Product Description
Product Model: 63-5013-13Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5013-13
Product Brand: TE Connectivity
Features
- AMPLIMITE D-Sub Connector, Series 90, Military Spec, Mil-C-24308 and Mil-C-39029 Contacts. AMPLIMITE size 22 crimp snap-in pin and socket contacts for AMPLIMITE series 90 Mil-C-24308 military spec d-sub connectors. These size 22 crimp snap-in pin and socket contacts are made from gold plated copper alloy with a 0.030mm post diameter and accept a wire size of 0.08 to 0.40mm ;sup>2 ;/sup> (AWG 28-22) and an insulation diameter of 0.054mm.
Spec
- Quantity：1piece
- G***er : Female
- Contact Material : Copper Alloy
- Contact Plating : Gold over Nickel
- Wire Size : 28 → 22 AWG
- Contact Type : Signal
- Series : AMPLIMITE 90 Series
- Contact Size : 22
- Termination Method : Crimp
- Length : 13.16mm
- Series Number : M39029/57-354
- CODE No.:718-4001
