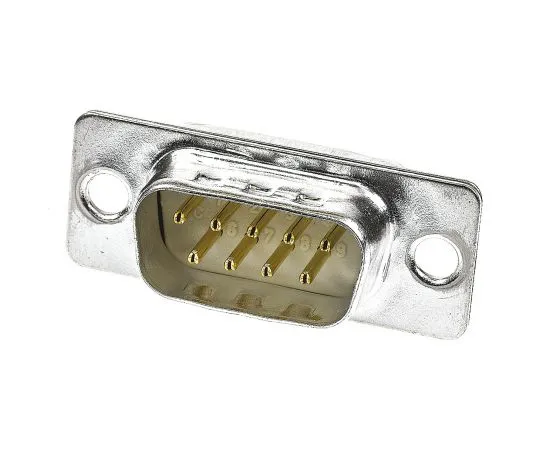

63-5013-12 TE Connectivity Panel Mount, 9 Pin D-sub Connector Plug, Shell Size E 4-1393483-7
model:
63-5013-12
brand:
TE Connectivity
Product Description
Product Model: 63-5013-12Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5013-12
Product Brand: TE Connectivity
Features
- AMPLIMITE D-Sub Connector, Solder Cup Termination, Cable Mount. AMPLIMITE standard density d-sub cable connectors with solder cup terminations, tin plated steel front shells, UL 94V-0 PBTP grey thermoplastic housings, 3.0mm diameter mounting holes and are pre-loaded copper alloy, gold plated contacts. Steel tin plated Grey thermoplastic connector housing 3A current rating 500 MΩ insulation resistance Dielectric Strength 1000Vac Temperature rating -50 to +125°C
Spec
- Quantity：1piece
- Number of Contacts : 9
- G***er : Male
- D Connector Type : Standard
- D-Sub Shell Size : E
- Body Orientation : Straight
- Contact Plating : Gold over Palladium over Nickel
- Contact Material : Copper Alloy
- Length : 31.1mm
- Depth : 16.82mm
- CODE No.:718-3991
