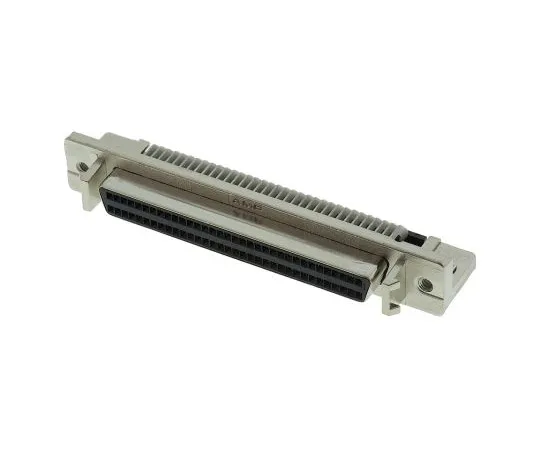

63-5013-07 TE Connectivity Amplimite .050 III Series, 68 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.54mm Pitch, 5787082-7
model:
63-5013-07
brand:
TE Connectivity
Product Description
Product Model: 63-5013-07Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5013-07
Product Brand: TE Connectivity
Features
- Shielded AMPLIMITE .050 Series Connectors, Series III, are approved to SCSI-2, SCSI-3, EIA RS-232, ISO-11569*, IPI-2, HIPPI, and IEE 802.3 MII standards. AMPLIMITE .050 Series III D-Sub Shielded Receptacle Header Connectors. AMPLIMITE .050 Series III PCB d-sub receptacle headers with a compact space saving design and high density D type interface with 1.27 x 2.54 mm contact spacing. These AMPLIMITE .050 Series III PCB mount d-sub connectors have full shielding which offers excellent EMI/RFI protection. The housings are made from high temperature thermoplastic which are compatible with reflow solder processes. The right angle PCB d-sub headers are available with integral board locks that enable a secure connection to the PCB and provide grounding. These AMPLIMITE .050 PCB D-sub headers are also available with rails and latch blocks which lock the header to the corresponding mating cable connector. The rails also offer extra contact protection by preventing a side to side rocking movement during unmating. Features and Benefits. Compact, space saving design Full shielding for EMI/RFI protection Compatible with surface mount reflow solder process Integral board locks secure PCB connection and grounding Rails and latch blocks for secure mating connection. Applications. These AMPLIMITE .050 Series III PCB d-sub connectors are suitable for *** in applications where high density and space saving are key requirements. Applications include consumer electronics, telecommunications, Local Area Networks, military, industrial and medical equipment
Spec
- Quantity:1piece
- Number of Contacts : 68
- G***er : Female
- Body Orientation : Right Angle
- Mounting Type : Through Hole
- Pitch : 2.54mm
- Mounting Hardware : Boardlocks and Latchblocks
- Housing Material : Thermoplastic
- Voltage Rating : 30 V ac
- Length : 63.88mm
- Width : 10.31mm
- Depth : 16.87mm
- Dimensions : 63.88 x 10.31 x 16.87mm
- Contact Plating : Gold over Nickel
- CODE No.:718-3657
