63-5012-63 8 Way Surface Mount DIP Switch SPST 4-1825059-1
Electronic/Electrical Parts and Controll Equipments

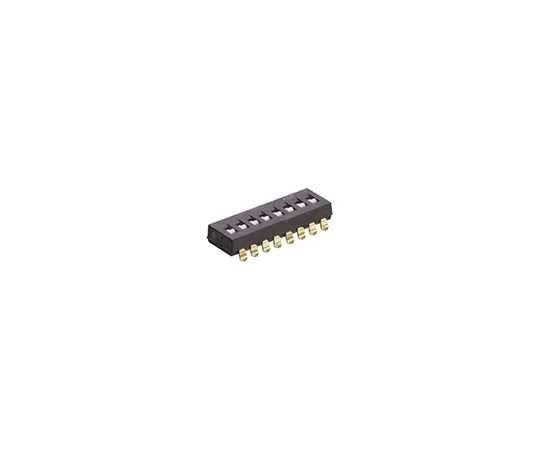

63-5012-63 8 Way Surface Mount DIP Switch SPST 4-1825059-1

model: 63-5012-63
brand: TE Connectivity

Product Description

Product Model: 63-5012-63Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5012-63
Product Brand: TE Connectivity

Features

  • Flush Actuator Slide Switches. High pressure wiping contact for aqueous or solvent cleaning without tape seal Can withstand vapour phase reflow or wave soldering conditions Contact resistance: 50mΩ Insulation resistance: 1000 MΩ @100 Vdc Mechanical life: 1000 cycles

Spec

  • Quantity:1piece
  • Contact Configuration : SPST
  • Contact Current Rating : 100 mA@ 24 V dc
  • Contact Material : Gold over Nickel Plated Copper Alloy
  • Number of Positions : 8
  • Mounting Type : Surface Mount
  • Actuator Type : Slide
  • Package Style : DIP
  • Mechanical Life : 1000Operations
  • Maximum Operating Temperature : +85°C
  • Minimum Operating Temperature : -30°C
  • Operating Temperature Range : -30 → +85°C
  • CODE No.:718-2180
