Electronic/Electrical Parts and Controll Equipments
63-5012-60 7 Way Through Hole DIP Switch SPST 1825057-6
model:
63-5012-60
brand:
TE Connectivity
Product Description
Product Model: 63-5012-60Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5012-60
Product Brand: TE Connectivity
Features

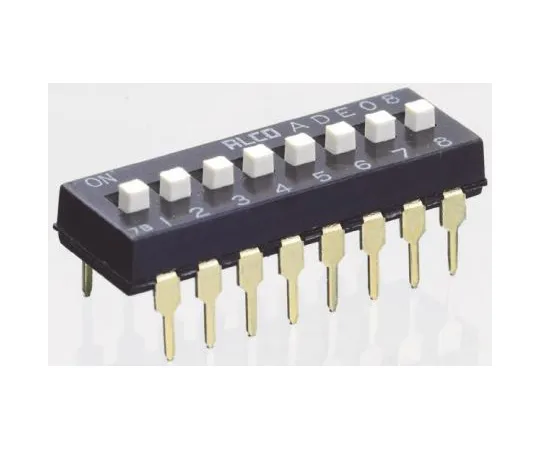

- Unless stated otherwise, these switches are not suitable for immersion cleaning. TE Connectivity ADE and ADF Series DIP Switches. ADE and ADF series through hole mounting 7.5 x 3.5mm DIP switches with a 2.54mm centerline, gold flash plated contacts and black PPS housings. The ADE series DIP switches have ext***ed slide actuators whilst the ADF series DIP switcheshave flush slide actuators. Both versions of these DIP switches have a high pressure contact system and are auto insertable. High pressure wiping contact allows aqueous or solvent cleaning without tape seal Can withstand vapour phase reflow or wave soldering conditions Contact resistance: 50mΩ
Spec
- Quantity：1piece
- Contact Configuration : SPST
- Contact Current Rating : 100 mA@ 24 V dc
- Contact Material : Copper Alloy
- Number of Positions : 7
- Mounting Type : Through Hole
- Actuator Type : Slide
- Package Style : DIP
- Maximum Operating Temperature : +85°C
- Minimum Operating Temperature : -30°C
- Operating Temperature Range : -30 → +85°C
- CODE No.:718-2118
