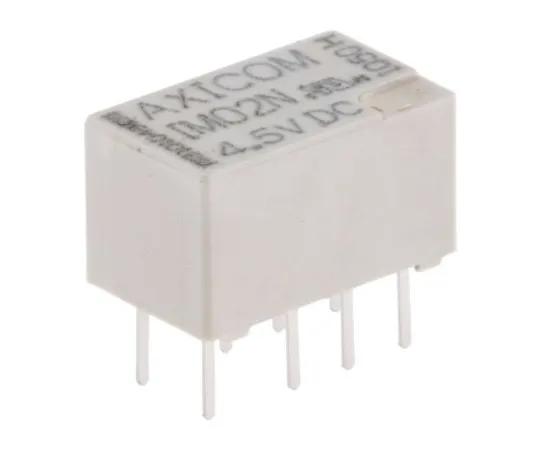

63-5012-46 TE ConnectivityIM DPDT Non-Latching Relay PCB Mount, 4.5V dc Coil, 2A 1-1462038-2
Electronic/Electrical Parts and Controll Equipments

63-5012-46 TE ConnectivityIM DPDT Non-Latching Relay PCB Mount, 4.5V dc Coil, 2A 1-1462038-2

model: 63-5012-46
brand: TE Connectivity

Product Description

Product Model: 63-5012-46Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5012-46
Product Brand: TE Connectivity

Features

  • UL. TE Connectivity PCB Mount Signal Relay - IM Series. IM series slimline PCB mount signal relays with a low profile of 5.65mm that occupy a minimum board space of 60mm². These slimline IM series PCB mount signal relays have a low coil power consumption of 140mW for standard coil, 100mW for bistable and 50mW for the ultra high sensitive versions, along with a high dielectric surge capability and 300g mechanical shock resistance. Features and Benefits:. Slimline and low profile - 10x6x5.65 mm Bifurcated contacts, gold plated Hermetically sealed (RT V), IP67 High mechanical shock resistance up to 300G functional, 500G survival Insulation resistance at 500V dc >10⁹Ω High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45. 1500V between open contacts and 2500V between coil and contacts. Applications:. Telecommunication equipment Optical network terminals Office equipment Test and measurement equipment Medical equipment Automotive applications

Spec

  • Quantity:1piece
  • Coil Voltage : 4.5V dc
  • Coil Power : 140mW
  • Coil Resistance : 145 Ω
  • Isolation Coil To Contact : 1.8kV rms
  • Contact Configuration : DPDT
  • Mounting Type : PCB Mount
  • Switching Current : 2A
  • Terminal Type : Through Hole
  • Maximum Switching Voltage AC : 250V ac
  • Maximum Switching Voltage DC : 220V dc
  • Depth : 6mm
  • CODE No.:718-1765
