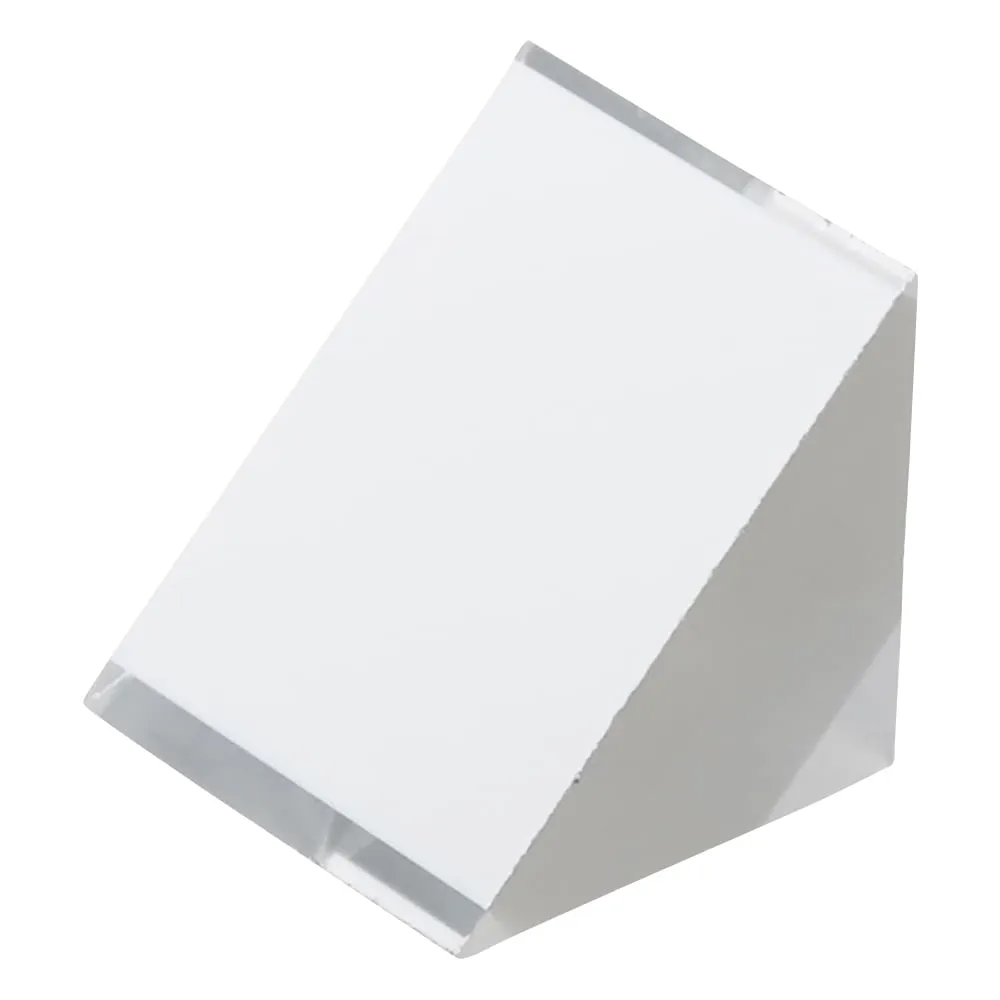

3-6897-01 90° Straight Angle Prism Mirror 5 x 5 x 5mm TS-0702PAL
model:
3-6897-01
category:
Analyzer, Testing Equipment
Product Description
Product Model: 3-6897-01 Features This product is ***d […]
Contact Us
Product Details
Product Model: 3-6897-01
Features
- This product is ***d as mirror with the inclined surface provided with aluminum coating.
- Used to deviate light path by 90°.
- Compared withplate mirror, this product allows for easy alignment of metal film surface at 45°.
Spec
- Size (mm): 5 x 5 x 5
- Specification: One side of slope AL+SiO coat
- Material: BK7
- Design wavelength: 587.6nm
- Refractive index: 1.51680/nd
- Tolerance range
- Outline: ±0.2mm
- Angle tolerance: ±3 minutes (3′)
- Surface accuracy before coating: λ/2
- Surface quality: MIL60-40
- Coat specification
- Reflective ratio: R> 80% (when 587.6nm)
