Electronic/Electrical Parts and Controll Equipments

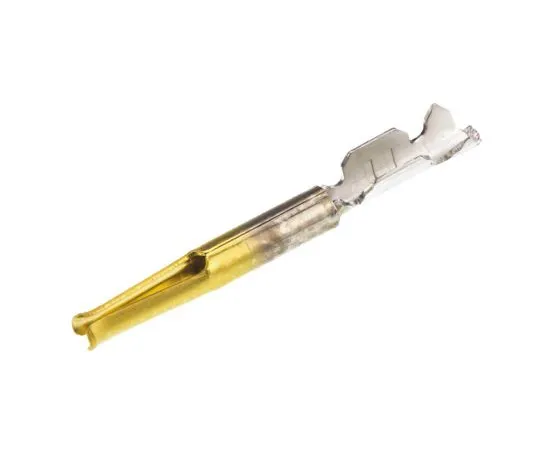

63-5012-15 TE Connectivity AMPLIMITE HDP-22 Series size 22 Female Crimp D-sub Connector Contact, Gold over Nickel Plated Signal, 1658686-1
model:
63-5012-15
brand:
TE Connectivity
Product Description
Product Model: 63-5012-15Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5012-15
Product Brand: TE Connectivity
Features
- AMPLIMITE Size 22 DF Crimp Snap-In Contacts for HDP-22 D-Sub Connectors. AMPLIMITE size 22 DF crimp snap-in contacts for HDP-22 d-sub connectors. These 22 DF crimp snap-in contacts are precision formed and accept a wire size range of 28-22 AWG (0.4 to 0.08mm ;sup>2 ;/sup>). The pin crimp contacts are made from brass and the socket contacts are made from phosphor bronze. The platings for these contacts are as follows: Stock numbers ; 680-9692 680-9692 , ; 270-9838 270-9838 , ; 718-1207 718-1207 and ; 314-8010 314-8010 are duplex plated with 0.00076 gold Stock numbers ; 798-1322 798-1322 , ; 270-9850 270-9850 and ; 314-8026 314-8026 are duplex plated gold flash For PRO-CRIMPER II hand tool see stock number ; 314-8032 314-8032 For insertion/extraction tool see stock number ; 446-822 446-822. Male and female crimp contacts. Will accept wire sizes 28 to 22 a.w.g. (0.08-0.4mm ;sup>2 ;/sup>). Use crimp tool stock no. ; 314-8032 314-8032 and insert/extraction tool stock no. ; 446-822 446-822 .
Spec
- Quantity:1bag(10pieces)
- G***er : Female
- Contact Material : Phosphor Bronze
- Contact Plating : Gold over Nickel
- Wire Size : 28 → 22 AWG
- Contact Type : Signal
- Series : AMPLIMITE HDP-22
- Contact Size : 22
- Termination Method : Crimp
- CODE No.:718-1207
