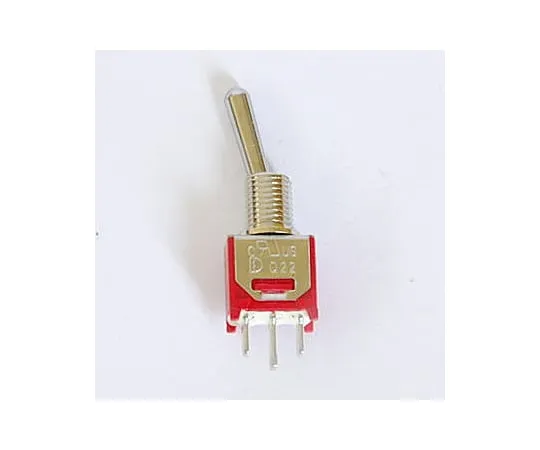

63-3106-15 Small toggle Switch ON-ON 2MS1-T1-B1-M1-S-E
Product Description
Product Model: 63-3106-15Product Brand: Linkman Feature […]
Contact Us
Product Details
Product Model: 63-3106-15
Product Brand: Linkman
Features
- This is the switch for the single pole/throw/one-circuit ON-ON of the board mounting method. It is a board mounting type switch of 2.54 mm pitch with a width of about 8 mm. ON-ON one-circuit two-contact switch with no intermediate OFF.
Spec
- Operation Shape: Bat-shaped Lever
- Number of poles: 2
- Switch characteristics: ON-ON
- Terminal Shape: Solder Terminal
- RATING: 125 VAC/28 VDC: 3 A 250 VAC: 1 A
- Implementation: Panel
- Contact Resistance: 20 momega MAX
- Withstand voltage: -
- Insulation resistance: 1000 megohms (min)
- Mechanical opening and closing durability: 30,000 cycles
- Electrical Opening and Closing Durability: -
- Lever fall angle: -
- Operating temperature range: -30 degrees C to + 85 degrees C
