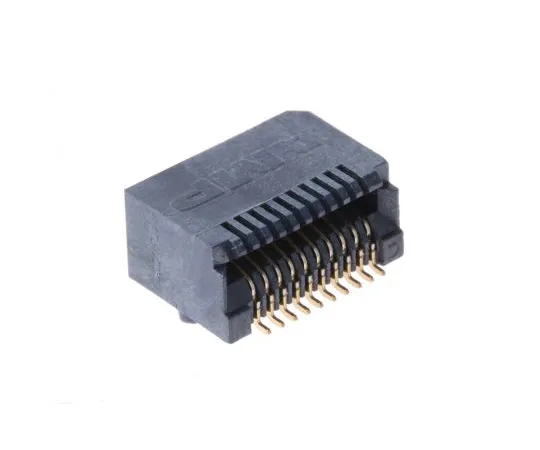

63-5011-58 TE Connectivity 20 Way Female SFP Connector 1367073-2
model:
63-5011-58
brand:
TE Connectivity
Product Description
Product Model: 63-5011-58Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5011-58
Product Brand: TE Connectivity
Features
- TE Connectivity SFP (Small Form Factor Pluggable) SMT Connectors. SFP (Small Form Factor Pluggable) SMT PT (pluggable transceiver) connectors for *** with SFP cages to form part of high-speed pluggable I/O interface. The SFP system is designed for increased functionality and to meet increasing bandwidth demands. SFP connectors support applications up to 4 Gbit/s and SFP+ connectors support applications up to 16 Gbit/s. These SFP PT connectors have a reliable 20 position interface with improved signal integrity with contact spacing on a 0.8 mm centreline. Each of these SFP connectors consists of a housing with right angle SMT contacts. The housings incorporate a card entry slot that accepts a 1.0 ±0.1 mm thick integrated circuit card. Alignment posts provide connector stability on the PCB and board standoffs allow easy PCB cleaning after soldering. Part number 1367073-1 is an SFP connector with 0.38 μm gold plated contacts Part number 1367073-2 is an SFP connector with 0.76 μm gold plated contacts Part number 1888247-1 is an SFP+ compliant connector with 0.76 μm gold plated contacts Part number 1888247-2 is an SFP+ compliant connector with 0.38 μm gold plated contacts. Features and Benefits. SFP High-speed pluggable I/O interface Supports data rates of up to 4 Gbit/s (SFP) and up to 16 Gbit/s (SFP+) Reliable 20 position interface for increased signal integrity Card entry slot for 1.0 ±0.1 mm IC card Alignment posts for PCB stability Board standoffs for easy PCB cleaning. Product Application Information. These SFP high-speed pluggable I/O connectors are for *** in applications that require a high-speed data rate. Applications include switches, routers, servers, hubs, storage, controllers and Network Interface Cards
Spec
- Quantity:1piece
- Type : SFP
- G***er : Female
- Number of Ports : 1
- Number of Contacts : 20
- Contact Material : Phosphor Bronze
- Contact Plating : Gold over Nickel
- Housing Material : Liquid Crystal Polymer
- Termination Method : Solder
- CODE No.:717-4391
