Features

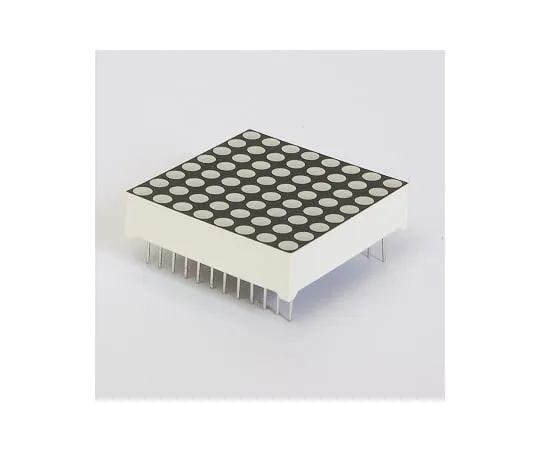

• This module combines 64 red and green LEDs.
• Use a combination of 8 rows and 16 columns of terminals to apply current to the LED you want to light.
• LEDs are directly connected between the terminals without any transistor circuits.
• It is exactly the same as a general LED, such as the need for a current limiting resistor.
• Package: 8×8LED Contents: 8×8 Matrix LED Shape: Rectangular 31.9 mm×31.9 mm×8.0 mm Light Emitting Color: Red/Green Forward Voltage: Red 2.1 V Green 2.2 V (typ) Forward Current IF: Red/Green 20 mA Luminance :-
• Directivity :-
• Wavelength: Red 635 nm Green 565 nm Built-in Resistance :-
• Remarks: -
