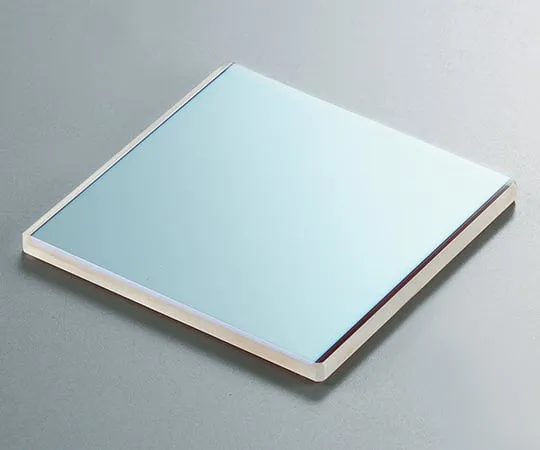

3-6847-01 Cold Mirror 30 x 30 x 2mm TS-0800R1
model:
3-6847-01
category:
frame
Product Description
Product Model: 3-6847-01 Features Reflects visible ligh […]
Contact Us
Product Details
Product Model: 3-6847-01
Features
- Reflects visible light and transmits infrared rays and longer wavelength light.
- Used to protect samples from damage and avoid unwanted effect ca***d by heat built-up.
- Used to release heat rays emitted from a light source such as halogen lamp.
Spec
- Size (mm): 30 x 30 x 2
- Specification: Dielectric multi-layered film
- Material: B270
- Available wavelength: 400 - 700nm
- Incident angle: θ=0°
- Substrate refractive index: 1.523/nd
- Chamfer (45°): All around or all edges chamfered
- Tolerance range
- Outline: +0/-0.2mm
- Plate thickness: ±0.2mm
- Surface accuracy before coating: 2λ - 3λ (effective range: Including center within 85%)
- Surface quality: MIL60-40
