Electronic/Electrical Parts and Controll Equipments

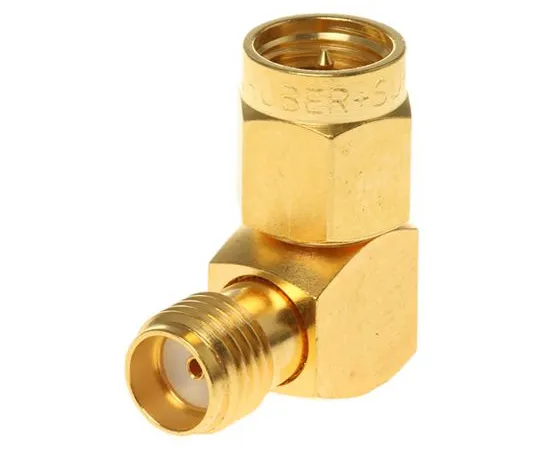

63-5010-79 Right Angle 50Ω RF Adapter SMA Plug to SMA Socket 0 → 18GHz 53_SMA-50-0-2/111_NE
model:
63-5010-79
brand:
Huber & Suhner
Product Description
Product Model: 63-5010-79Product Brand: Huber & Suh […]
Contact Us
Product Details
Product Model: 63-5010-79
Product Brand: Huber & Suhner
Features
- Interface to IEC 60169-15_MIL-STD-348A/310_CECC 22110 Precision Interface to IEC 60169-15_MIL-STD-348A/405_CECC 22110 stock number ; 716-4940 716-4940. Huber+ Suhner 50 Ohm SMA RF Coaxial Adapters. A range of 50 Ohm SMA series RF coaxial adapters with a variety of configurations including SMA plug to SMA plug, SMA jack to SMA jack and SMA plug to SMA jack with straight and elbow orientations and bulkhead mount options. These 50 Ohm SMA series RF coaxial adapters include an SMA-precision plug to SMA-precision jack adapter (stock number ; 716-4940 716-4940 ) for *** in test and measurement applications with an expanded frequency range of up to 26.5 GHz and a mating interface standard of IEC 60169-15_MIL-STD-348A/405_CECC 22110. Stock number ; 716-4930 716-4930 is an SMA 26.5GHz jack to SMA 26.5GHz jack bulkhead adapter which also has an expanded frequency range of up to 26.5 GHz with a SMA-26.5GHz - SUHNER-SMA-26.5GHz interface standard. A hermetically sealed SMA jack to SMA jack adapter is also available (stock number ; 716-4798 716-4798 ) which has IP 68 ingress protection.
Spec
- Quantity:1piece
- Adapter Type : SMA Plug to SMA Socket
- Adapter Type A : SMA
- Adapter Type B : SMA
- G***er A : Male
- G***er B : Female
- Impedance : 50Ω
- Body Orientation : Right Angle
- Operating Frequency : 0 → 18GHz
- Contact Plating : Gold over Nickel
- Length : 17.2mm
- Body Plating : Gold over Nickel
- Contact Material : Beryllium Copper
- CODE No.:716-4785
