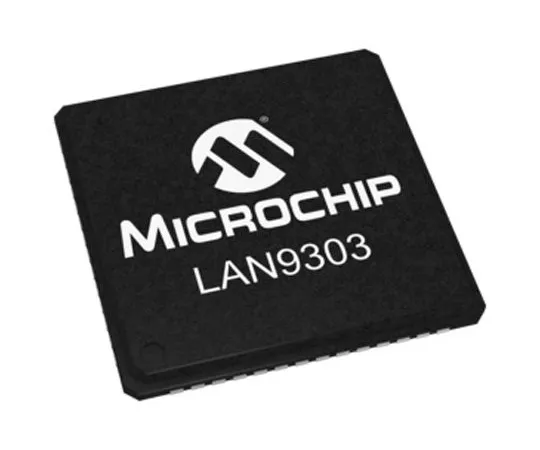

63-5010-66 Microchip Ethernet Switch, MII/RMII, 10 Mbps, 100 Mbps 3.3 V, 56-Pin QFN LAN9303-ABZJ
Electronic/Electrical Parts and Controll Equipments

63-5010-66 Microchip Ethernet Switch, MII/RMII, 10 Mbps, 100 Mbps 3.3 V, 56-Pin QFN LAN9303-ABZJ

model: 63-5010-66
brand: Microchip

Product Description

Product Model: 63-5010-66Product Brand: Microchip Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5010-66
Product Brand: Microchip

Features

  • LAN9303 10/100 Ethernet Switches. The LAN9303 from Microchip is a 3-port 10/100 managed Ethernet Switch in a small footprint QFN package, featuring a MII/RMII/Turbo MII interface that allows network speeds of up to 200Mbps. Features. Full-featured 3-port Switches with per-port IEEE 802.1Q VLAN support (up to 16 VLAN groups) ±8kV/15kV per-port ESD protection IGMP v1/v2 monitoring for multicast packet filtering Up to 200 Mbps network speed via a Turbo MII interface Optional EEPROM or external CPU serial management support via an I2C™ interface Virtual PHY feature simplifies software development by mimicking multiple switch ports as a single-port PHY Integrated regulators require a single 3.3V supply 42 per-port MIB counters for efficient network management

Spec

  • Quantity:1piece
  • PHY/Transceiver Interface : MII/RMII
  • Typical Data Rate : 10 Mbps, 100 Mbps
  • Number of Ports : 3
  • VLAN Support : Yes
  • Integrated LED Drivers : No
  • Power Supply Type : Single
  • Typical Operating Supply Voltage : 3.3 V
  • Mounting Type : Surface Mount
  • Package Type : QFN
  • Pin Count : 56
  • Dimensions : 8 x 8 x 0.95mm
  • Height : 0.95mm
  • Length : 8mm
  • Maximum Operating Temperature : +70 °C
  • CODE No.:716-0446
