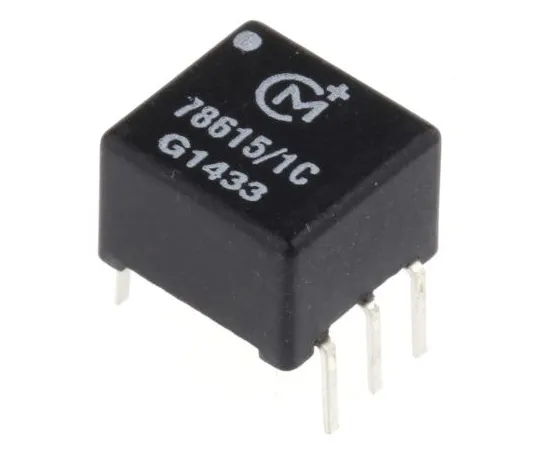

63-5010-09 2 Output Filtering SMPS Transformer, 2mH 78615/1C
Electronic/Electrical Parts and Controll Equipments

63-5010-09 2 Output Filtering SMPS Transformer, 2mH 78615/1C

model: 63-5010-09
brand: Murata Power Solutions

Product Description

Product Model: 63-5010-09Product Brand: Murata Power So […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5010-09
Product Brand: Murata Power Solutions

Features

  • Pulse Transformer 786 Series. General purpose pulse transformers ***d in coupling, thyristor/triac firing and small sized switch mode power supply applications The standard turns ratios may be modified by connecting any two windings in series Can also be ***d as a common mode choke in filtering applications

Spec

  • Quantity:1piece
  • Number of Outputs : 2
  • Mounting Type : Through Hole
  • Application : Filtering
  • Inductance : 2mH
  • Termination Type : Pin
  • Length : 9.52mm
  • Width : 9mm
  • Depth : 6.35mm
  • Dimensions : 9.52 x 9 x 6.35mm
  • Isolation Voltage : 1kV
  • Leakage Inductance : 16µH
  • CODE No.:715-7009
