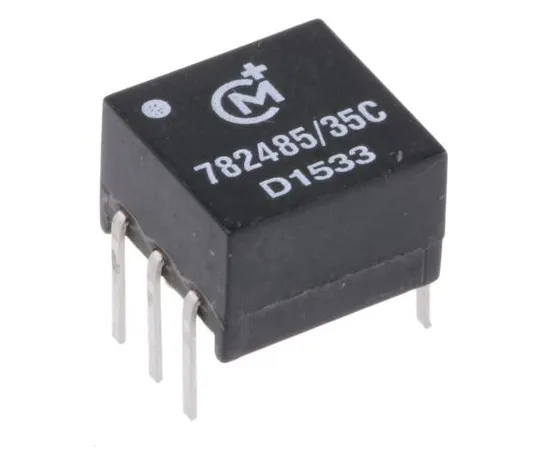

63-5009-90 1:2.2 Through Hole Telecom Transformer, 234μH, 0.5Ω 782485/35C
Electronic/Electrical Parts and Controll Equipments

63-5009-90 1:2.2 Through Hole Telecom Transformer, 234μH, 0.5Ω 782485/35C

model: 63-5009-90
brand: Murata Power Solutions

Product Description

Product Model: 63-5009-90Product Brand: Murata Power So […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5009-90
Product Brand: Murata Power Solutions

Features

  • ADM2452E RS485/232 Isolation transformer. Isolation converter transformer with isolation voltage of 2.5 kVrms (78485 types) and 4 kVrms (78482 types) Specifically designed to provide isolated RS-485 and RS-232 interface Analog Devices integrated circuit AMD2452E compatable Industry standard pinout, low profile package 3.3V and 5V versions with frequency range up to 500 kHz

Spec

  • Quantity:1piece
  • Primary Inductance : 234µH
  • Primary DC Resistance : 0.5Ω
  • Turns Ratio : 1:2.2
  • Mounting Type : Through Hole
  • Leakage Inductance : 0.168µH
  • Dimensions : 9.14 x 10.46 x 6.35mm
  • Depth : 6.35mm
  • Length : 9.14mm
  • Width : 10.46mm
  • Maximum Temperature : +85°C
  • CODE No.:715-6898
