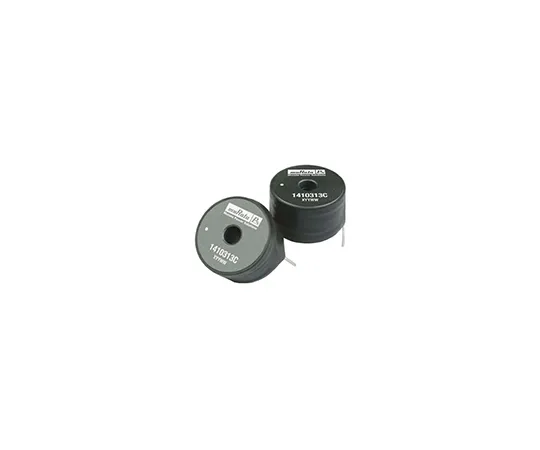

63-5009-88 Murata 22 mH ±10% Bobbin Inductor, Max SRF:200kHz, Q:30, 400mA Idc, 6.962Ω Rdc 1400 1422604C
model:
63-5009-88
brand:
Murata Power Solutions
Product Description
Product Model: 63-5009-88Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 63-5009-88
Product Brand: Murata Power Solutions
Features
- Murata 1400 Series High Current Radial Inductors. Designed for *** in power line applications such as switching regulators, filters and suppression circuits Constructed from high saturation flux density material enabling *** in high current applications Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole Terminated with easy-strip pre-tinned enamelled copper leads Lead length 10mm Operating temperature: -40 → +85°C Inductance Tolerance: ±10%
Spec
- Quantity：1piece
- Inductance : 22 mH
- Maximum DC Current : 400mA
- Mounting Type : Radial
- Maximum DC Resistance : 6.962Ω
- Tolerance : ±10%
- Length : 32mm
- Depth : 31.3mm
- Height : 23.3mm
- Dimensions : 32 x 31.3 x 23.3mm
- Maximum Self Resonant Frequency : 200kHz
- Lead Pitch : 28.3mm
- Series : 1400
- Minimum Quality Factor : 30
- CODE No.:715-6866
