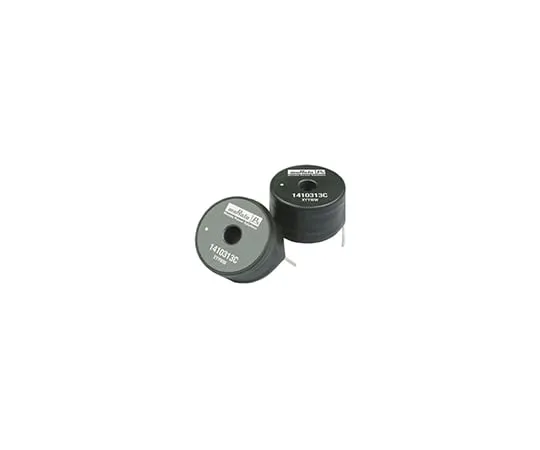

63-5009-85 Murata 10 mH ±10% Bobbin Inductor, Max SRF:300kHz, Q:48, 500mA Idc, 3.394Ω Rdc 1400 1410605C
model:
63-5009-85
brand:
Murata Power Solutions
Product Description
Product Model: 63-5009-85Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 63-5009-85
Product Brand: Murata Power Solutions
Features
- Murata 1400 Series High Current Radial Inductors. Designed for *** in power line applications such as switching regulators, filters and suppression circuits Constructed from high saturation flux density material enabling *** in high current applications Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole Terminated with easy-strip pre-tinned enamelled copper leads Lead length 10mm Operating temperature: -40 → +85°C Inductance Tolerance: ±10%
Spec
- Quantity：1piece
- Inductance : 10 mH
- Maximum DC Current : 500mA
- Mounting Type : Radial
- Maximum DC Resistance : 3.394Ω
- Tolerance : ±10%
- Length : 26.7mm
- Depth : 25.9mm
- Height : 20mm
- Dimensions : 26.7 x 25.9 x 20mm
- Maximum Self Resonant Frequency : 300kHz
- Lead Pitch : 23mm
- Series : 1400
- Minimum Quality Factor : 48
- CODE No.:715-6857
