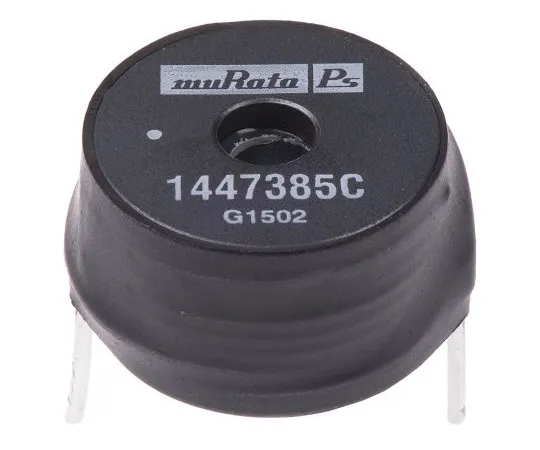

63-5009-75 Murata 47 μH ±10% Bobbin Inductor, Max SRF:6.7MHz, Q:33, 8.5A Idc, 21mΩ Rdc 1400 1447385C
model:
63-5009-75
brand:
Murata Power Solutions
Product Description
Product Model: 63-5009-75Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 63-5009-75
Product Brand: Murata Power Solutions
Features
- Murata 1400 Series High Current Radial Inductors. Designed for *** in power line applications such as switching regulators, filters and suppression circuits Constructed from high saturation flux density material enabling *** in high current applications Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole Terminated with easy-strip pre-tinned enamelled copper leads Lead length 10mm Operating temperature: -40 → +85°C Inductance Tolerance: ±10%
Spec
- Quantity:1piece
- Inductance : 47 μH
- Maximum DC Current : 8.5A
- Mounting Type : Radial
- Maximum DC Resistance : 21mΩ
- Tolerance : ±10%
- Length : 28.3mm
- Depth : 25.9mm
- Height : 15.5mm
- Dimensions : 28.3 x 25.9 x 15.5mm
- Maximum Self Resonant Frequency : 6.7MHz
- Lead Pitch : 23.8mm
- Series : 1400
- Minimum Quality Factor : 33
- CODE No.:715-6762
