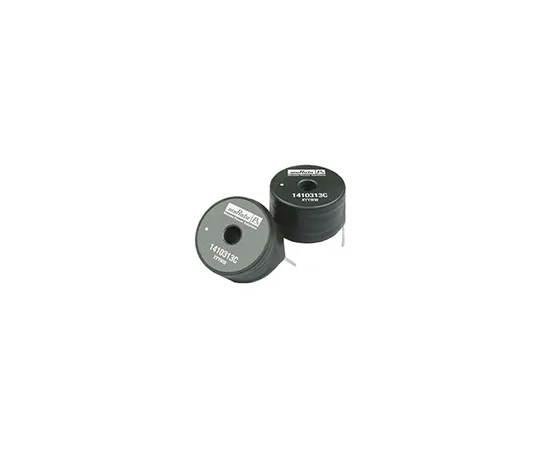

63-5009-74 Murata 15 μH ±10% Bobbin Inductor, Max SRF:12.7MHz, Q:42, 12A Idc, 9mΩ Rdc 1400 1415312C
model:
63-5009-74
brand:
Murata Power Solutions
Product Description
Product Model: 63-5009-74Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 63-5009-74
Product Brand: Murata Power Solutions
Features
- Murata 1400 Series High Current Radial Inductors. Designed for use in power line applications such as switching regulators, filters and suppression circuits Constructed from high saturation flux density material enabling use in high current applications Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole Terminated with easy-strip pre-tinned enamelled copper leads Lead length 10mm Operating temperature: -40 → +85°C Inductance Tolerance: ±10%
Spec
- Quantity：1piece
- Inductance : 15 μH
- Maximum DC Current : 12A
- Mounting Type : Radial
- Maximum DC Resistance : 9mΩ
- Tolerance : ±10%
- Length : 28.5mm
- Depth : 25.9mm
- Height : 15.5mm
- Dimensions : 28.5 x 25.9 x 15.5mm
- Maximum Self Resonant Frequency : 12.7MHz
- Lead Pitch : 23.9mm
- Series : 1400
- Minimum Quality Factor : 42
- CODE No.:715-6759
