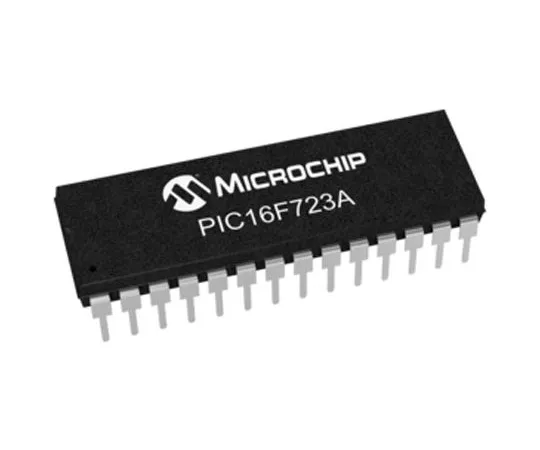

63-5009-45 Microchip PIC16F723A-I/SP, 8bit PIC Microcontroller, 20MHz, 4096 words Flash, 28-Pin SPDIP PIC16F723A-I/SP
Electronic/Electrical Parts and Controll Equipments

63-5009-45 Microchip PIC16F723A-I/SP, 8bit PIC Microcontroller, 20MHz, 4096 words Flash, 28-Pin SPDIP PIC16F723A-I/SP

model: 63-5009-45
brand: Microchip

Product Description

Product Model: 63-5009-45Product Brand: Microchip Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5009-45
Product Brand: Microchip

Features

  • PIC16F722A/723A 8-Bit Flash Microcontrollers. The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F722A/723A family of microcontrollers is based upon Microchip s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 7 Kbytes program memory and up to 192 bytes RAM. On board is an oscillator factory calibrated to ±1% accuracy. Microcontroller Features. 20 MHz Max. CPU Speed 35 Instructions 8 Level Hardware Stack 25 I/O Pins nanoWatt XLP Technology Power-On Reset (POR) Power-Up Timer (PWRT) Brown-Out Reset (BOR) Watchdog Timer (WDT) In-Circuit Serial Programming (ICSP) In-Circuit Debug (ICD). Peripherals. 11 Channel 8-bit Analogue to Digital Converter (ADC) 8 Channel mTouchTM Sensing Oscillator Module Two Capture, Compare, PWM (CCP) Modules Two 8-bit Timers One 16-bit Timer Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART) Synchronous Serial Port (SSP) with SPI and I2C

Spec

  • Quantity:1piece
  • Family Name : PIC16F
  • Package Type : SPDIP
  • Mounting Type : Through Hole
  • Pin Count : 28
  • Device Core : PIC
  • Data Bus Width : 8bit
  • Program Memory Size : 4096 words
  • Maximum Frequency : 20MHz
  • RAM Size : 192 B
  • Number of PWM Units : 1
  • ADC Channels : 11
  • Number of SPI Channels : 1
  • Typical Operating Supply Voltage : 1.8 → 5.5 V
  • Timer Resolution : 8 bit, 16 bit
  • CODE No.:715-4369
