Features

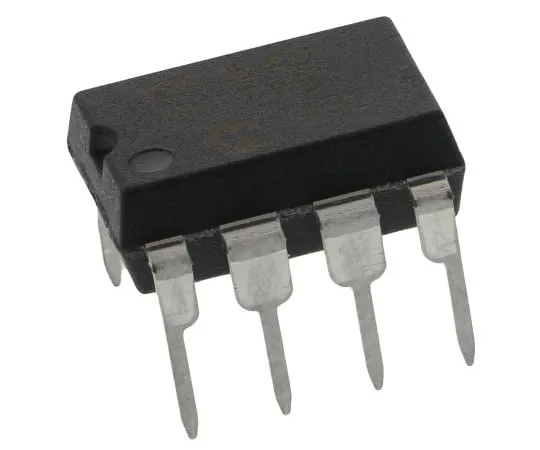

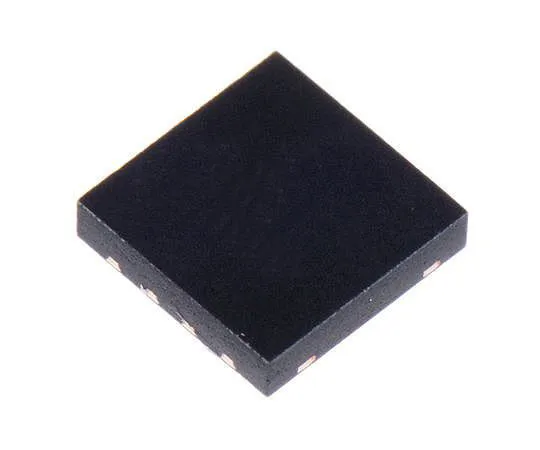

• PIC12F1822/1840 8-Bit Flash Microcontrollers. Microchip s PIC12 Microcontrollers (MCUs) were the world s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as extra features and further improvements are added. The PIC12F1822/1840 family of microcontrollers is based upon Microchip s enhanced mid-range core that features a deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, 3.5 Kbytes program memory and data memory of 128 bytes. On board is a configurable RC oscillator with ±1% accuracy. Features. 49 Instructions 16 Level Hardware Stack 16 MHz Internal Oscillator – Selectable Output Range from 16 MHz to 31 kHz 6 I/O Pins 1 Comparator 4 Channel 10-bit Analogue to Digital Converter (ADC) 4 Channel Capacitive Sensing (mTouch™) Module Two 8-bit Timers One 16-bit Timer 1 Enhanced Capture, Compare PWM (ECCP) Modules Master Synchronous Serial Port (MSSP) with SPI and I2C EUSART In Circuit Serial Programming (ICSP) Extreme Low Power (XLP) Technology
