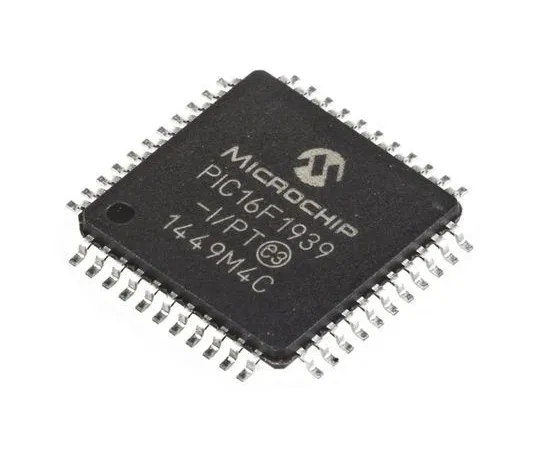

63-5009-27 Microchip, 8bit PIC Microcontroller, 32MHz, 28 kB Flash, 44-Pin TQFP PIC16F1939-I/PT
Electronic/Electrical Parts and Controll Equipments

63-5009-27 Microchip, 8bit PIC Microcontroller, 32MHz, 28 kB Flash, 44-Pin TQFP PIC16F1939-I/PT

model: 63-5009-27
brand: Microchip

Product Description

Product Model: 63-5009-27Product Brand: Microchip Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5009-27
Product Brand: Microchip

Features

  • PIC16F1938/1939 8-Bit Flash Microcontrollers. The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F1938/1939 family of microcontrollers is based upon Microchip s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, 28 Kbytes program memory, 1024 bytes RAM and Data EEPROM of 256 bytes. On board is a configurable oscillator with ±1% accuracy. Microcontroller Features. 32 MHz Max. CPU Speed 49 Instructions 16 Level Hardware Stack 32 MHz Internal Oscillator – Selectable Frequency Range 32 MHz to 31 kHz 25 I/O Pins – PIC16F1938 36 I/O Pins – PIC16F1939 XLP Technology Power-On Reset (POR) Power-Up Timer (PWRT) Oscillator Start-Up Timer (OST) Brown-Out Reset (BOR) Watchdog Timer (WDT) Low-Voltage Programming (LVP) In-Circuit Serial Programming (ICSP) In-Circuit Debug (ICD) – Optional Header for External Debug also Available. Peripherals. Integrated LCD Controller – PIC16F1938 60 Segments, PIC16F1939 96 Segments 10-bit Analogue to Digital Converter (ADC) – PIC16F1938 11 Channel, PIC16F1939 14 Channel mTouchTM Capacitive Sensor Module – PIC16F1938 8 Channel, PIC16F1939 16 Channel Two Capture/Compare/PWM (CCP) Modules Three Enhanced Capture/Compare/PWM (ECCP) Modules Two Comparators Four 8-bit Timers One 16-bit Timer Master Synchronous Serial Port (MSSP) with SPI and I2C Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) Fixed Voltage Reference (FVR) SR Latch

Spec

  • Quantity:1piece
  • Family Name : PIC16F
  • Package Type : TQFP
  • Mounting Type : Surface Mount
  • Pin Count : 44
  • Device Core : PIC
  • Data Bus Width : 8bit
  • Program Memory Size : 28 kB
  • Maximum Frequency : 32MHz
  • RAM Size : 1.024 kB, 256 B
  • Number of PWM Units : 5
  • ADC Channels : 14
  • Number of SPI Channels : 1
  • Typical Operating Supply Voltage : 1.8 → 5.5 V
  • Dimensions : 10 x 10 x 1mm
  • CODE No.:715-4113
