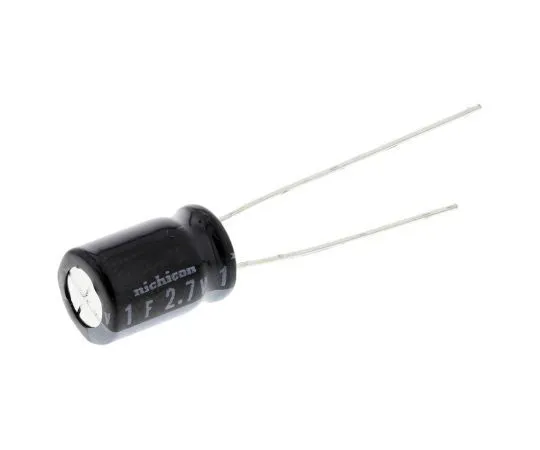

63-5009-14 Nichicon 3.3F Supercapacitor EDLC ±20% Tolerance UM Series 2.7V dc Through Hole JUMT1335MPD
Product Description
Product Model: 63-5009-14Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5009-14
Product Brand: NICHICON
Features
- UM Series Memory Backup. nichicon Um Series EDLC radial lead type Capacitors. These capacitors are high voltage and are suitable for quick charge and discharge, they also have a wide temperature range from -25º to +70ºC.
Spec
- Quantity：1piece
- Capacitance : 3.3F
- Voltage : 2.7V dc
- Mounting Type : Through Hole
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +70°C
- Diameter : 10mm
- Height : 20mm
- Dimensions : 10 (Dia.) x 20mm
- Lead Pitch : 5mm
- Equivalent Series Resistance : 1Ω
- Lifetime : 1000h
- Series : UM
- Tolerance : ±20%
- Depth : 20mm
- CODE No.:715-3514
