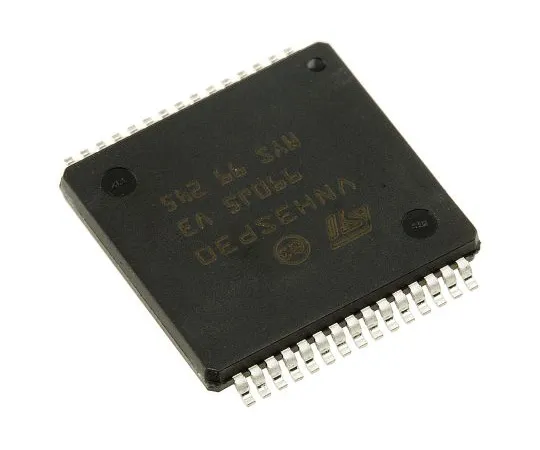

63-5005-16 STMicroelectronics VNH3SP30TR-E, Brushed Motor Driver IC, 40 V 30A 30-Pin, MultiPowerSO VNH3SP30TR-E
model:
63-5005-16
brand:
STMicroelectronics
Product Description
Product Model: 63-5005-16Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-5005-16
Product Brand: STMicroelectronics
Features
- AEC-Q100. Automotive Full Bridge Motor Drivers, STMicroelectronics. These full bridge (H-Bridge) motor driver devices are int***ed for a wide range of automotive applications. Features. Output current: 30A Undervoltage and overvoltage shutdown Overvoltage clamp Thermal shut down Cross-conduction protection Linear current limiter Very low standby power consumption PWM operation up to 10 kHz Protection against loss of ground and loss of Vcc. RS Product Codes. ; 714-7746 714-7746 VNH3SP30TR-E 30A 45mΩ 10kHz H-Bridge ; 920-6285 920-6285 VNH3SP30TR-E 30A 45mΩ 10kHz H-Bridge (Pack of 1000)
Spec
- Quantity：1piece
- Motor Type : Brushed DC
- Output Configuration : Full Bridge
- Maximum IGBT Collector Current : 30A
- Maximum Collector Emitter Voltage : 40 V
- Mounting Type : Surface Mount
- Package Type : MultiPowerSO
- Pin Count : 30
- Minimum Operating Supply Voltage : 5.5 V
- Typical Switching Frequency : 10kHz
- Width : 16mm
- CODE No.:714-7746
