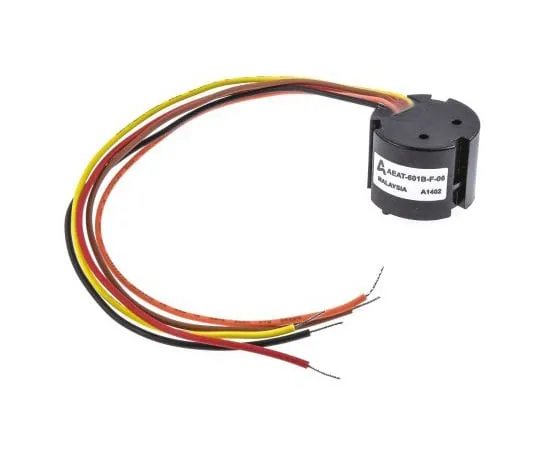

63-5004-02 Broadcom Incremental Encoder 256 ppr 12000rpm 4.5 → 5.5 V dc AEAT-601B-F06

model: 63-5004-02
brand: Broadcom

Product Description

Product Model: 63-5004-02Product Brand: Broadcom Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5004-02
Product Brand: Broadcom

Features

  • AEAT-601B Incremental Magnetic Encoder. The AEAT-601B is a low-cost rotary quadrature encoder that converts the rotation of a shaft to a series of pulses on 3 digital output channels. A suitable microcontroller can calculate angular position, speed and rotational direction from the two signals in phase quadrature and one-pulse per revolution index channel. The *** of magnetic technology for motion control and sensing activities eliminates mechanical contact and enables this device to be free from mechanical wear and tear. The encoder maximum rotational speed is typically only limited by the application bearing speed.. TTL 2-channel quadrature output + index Resolution: 256 ppr (CPR) Max rotational speed (mechanical): 12000 rpm Max rotational speed (electrical): 7000 rpm Operating temperature range: -40 to +125°C Supply voltage: +4.5 to +5.5 V Shaft diameter: 6 mm Shaft length: 8.5 ±1.0 mm Applications: Monitoring of shaft speeds, closed-loop (PID) control of DC motors, robots, automation

Spec

  • Quantity:1piece
  • Pulses Per Revolution : 256
  • Encoder Technology : Incremental
  • Maximum Revolutions : 12000rpm
  • Output Signal Type : Quadrature
  • Supply Voltage : 4.5 → 5.5 V dc
  • Minimum Operating Temperature : -40°C
  • Maximum Operating Temperature : +125°C
  • CODE No.:714-0237
