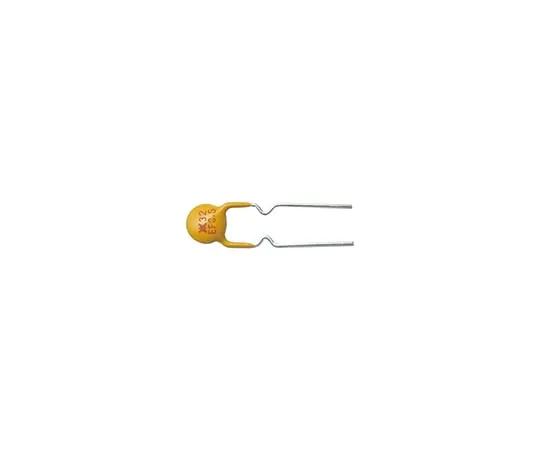

63-5002-98 Littelf*** 0.5A Hold current, Radial Leaded PCB Mount Resettable F***, 32V dc AHEF050
Product Description
Product Model: 63-5002-98Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5002-98
Product Brand: Littelfuse
Features
- Tyco PolySwitch™ PTC Devices AHEF Series. TE AHEF series f***s are automotive-specific versions of PolySwitch PPTC devices qualified and sold under the PS400 specification which is derived from AEC-Q200, the standard for electronic components ***d in the automotive industry. Applications they are typically ***d include telematics, infotainment and navigations systems, Liquid Crystal Display (LCD) back-light heaters, power and cigarette lighter outlets, plugs and adapter/chargers, motor and motor circuit protection including power door-locks, mirrors, lumbar pumps, seats, sunroofs, windows, air-flow detection and overcurrent protection in HVAC and cooling fan systems. Overcurrent and overvoltage circuit protection devices Resettable and single-*** overcurrent devices Wide range of form factor and termination methods Products meet applicable automotive industry standards Devices compatible with high-volume electronics assembly RoHS compliant
Spec
- Quantity:1bag(10pieces)
- Lead Orientation : Radial
- Trip Current : 1A
- Time to Trip : 3s
- Hold Current : 0.5A
- Voltage Rating : 32V dc
- Maximum Current : 100 A
- Minimum Resistance : 0.35Ω
- Maximum Resistance : 1.1Ω
- Power Dissipation : 0.9W
- Body Height : 12.7mm
- Body Length : 7.4mm
- Body Width : 3.3mm
- Wire Pitch : 4.3 → 5.8mm
- Wire Length : 7.8mm
- Wire Diameter : 24AWG
- CODE No.:712-7512
