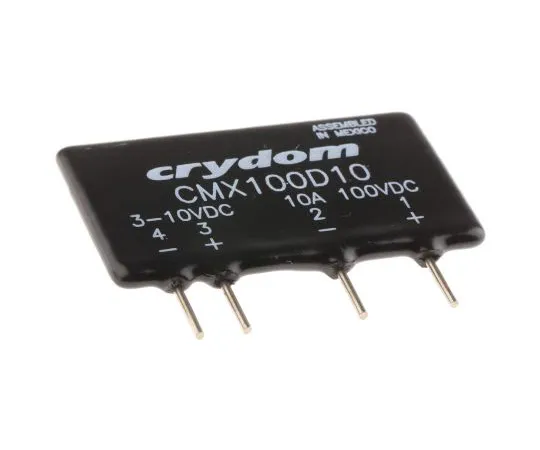

63-5002-90 Sensata / Crydom 10 A rms SPNO Solid State Relay, PCB Mount, MOSFET, 100 V dc Maximum Load CMX100D10
Electronic/Electrical Parts and Controll Equipments

63-5002-90 Sensata / Crydom 10 A rms SPNO Solid State Relay, PCB Mount, MOSFET, 100 V dc Maximum Load CMX100D10

model: 63-5002-90
brand: Sensata / Crydom

Product Description

Product Model: 63-5002-90Product Brand: Sensata / Crydo […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5002-90
Product Brand: Sensata / Crydom

Features

  • UL. CMX-SIL SSR up to 10Adc. These MOSFET output solid state relays offer DC switching in a PCB style SIP package. Typically application is for the control of solenoid valves. They are also ***d to drive the DC coils on larger contactors in a microprocessor driven control system, and ***d for in DC lighting control. MosFET output Extra low on-state resistance Industry standard footprint DC Control Surge current peak: 100A Input-Output capacitance: 15pF Operating temperature range: -30 to +80°C Dimensions H33mm x W7.6mm x D43.1mm

Spec

  • Quantity:1piece
  • Minimum Load Current : 0 A
  • Maximum Load Current : 10 A rms
  • Mounting Type : PCB Mount
  • Minimum Load Voltage : 0 V dc
  • Maximum Load Voltage : 100 V dc
  • Minimum Control Voltage : 3 V dc
  • Maximum Control Voltage : 10 V dc
  • Contact Configuration : SPNO
  • Terminal Type : Through Hole
  • Output Device : MOSFET
  • Package Style : SIP
  • Maximum Turn On Time : 1 ms
  • Dimensions : 43.1 x 7.6 x 25.4mm
  • Height : 25.4mm
  • CODE No.:712-5985
