63-5001-75 TE Connectivity Termi-Foil Series Crimp Barrel-Foil Connector 16-14AWG Barrel Size 17.06 x 11.53mm 1.9 mm Foil Thickness 329860
Electronic/Electrical Parts and Controll Equipments

63-5001-75 TE Connectivity Termi-Foil Series Crimp Barrel-Foil Connector 16-14AWG Barrel Size 17.06 x 11.53mm 1.9 mm Foil Thickness 329860

model: 63-5001-75
brand: TE Connectivity

Product Description

Product Model: 63-5001-75Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5001-75
Product Brand: TE Connectivity

Features

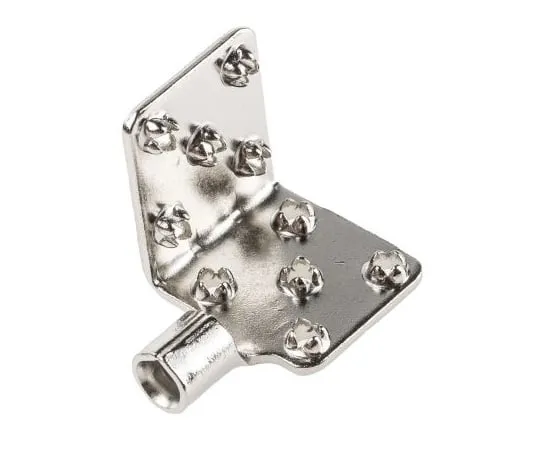

  • TE Connectivity TERMI-FOIL Wire Terminals. TERMI-FOIL wire terminals for *** in the manufacture of transformers making it possible to *** aluminium foil strip instead of copper wire windings. These TERMI-FOIL wire terminals can be applied to bare, insulated, anodized or coated aluminium and bare or insulated copper wire and have lances that penetrate surface oxides and insulation. When the two faces of these TERMI-FOIL terminals are clamped together these lances embed into the foil or strip creating an air-tight and moisture-proof connection. Typical applications for these TERMI-FOIL wire terminals include air or oil filled transformers, capacitors, reactors, solenoids, relays and regulators. They can also be applied in heating elements, alarm systems and electrostatic shields. Accommodate aluminium foil or strip thickness from 0.03 to 2.41mm and soft copper to 0.025mm Exceed current-carrying requirements No surface preparation necessary No noise injection in low-level audio circuits Will terminate or tap aluminium foil-wound coils Will splice two or more pieces of foil or strip

Spec

  • Quantity:1piece
  • Series : Termi-Foil
  • Barrel Size : 16-14AWG
  • Contact Dimensions : 17.06 x 11.53mm
  • Foil Thickness : 1.9 mm
  • Contact Length : 17.06mm
  • Contact Width : 11.53mm
  • CODE No.:712-2475
