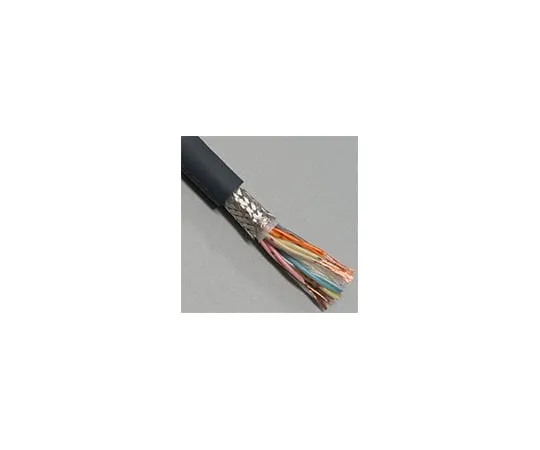

62-0739-90 Robot Cable (With Shield) EXT-3D-SB/CL3X/2517 (AWG22 Outer Diameter 4.7mm) 1m EXT-3D-SB/CL3X/25171P-AWG22
Product Description
Product Model: 62-0739-90Product Brand: FA Ubon Feature […]
Contact Us
Product Details
Product Model: 62-0739-90
Product Brand: FA Ubon
Features
- Uses high elastic TPE for insulation, high life for three-dimensional movement
- Realizes weight reduction compared to fluorine insulated cable
- Supports listing (NFPA70,79) with CL3X
- Oil and heat resistant
- Shielded
- Application: Mobile cable for articulated robot
Spec
- Cut length: 1m
- Format: EXT-3D-SB/CL3X/2517 1P-AWG22
- AWG size: AWG22
- Conductor configuration: 65 pieces/0.08mm
- Outer diameter: 4.7mm
- Allowable current: 7.1A
- Number of cores: 1
- Rating voltage: 300V, 105℃ rated
