Electronic/Electrical Parts and Controll Equipments

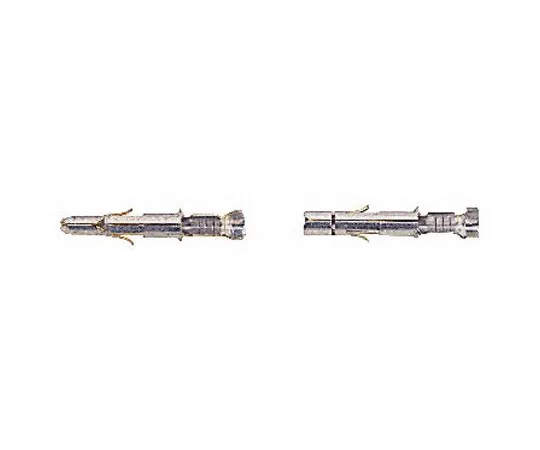

63-5001-52 TE Connectivity Universal MATE-N-LOK Male Crimp Terminal Contact 14AWG 350552-1 350552-1
model:
63-5001-52
brand:
TE Connectivity
Product Description
Product Model: 63-5001-52Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5001-52
Product Brand: TE Connectivity
Features
- For a suitable Tool frame see stock number ; 849-114 849-114 and a suitable die set see stock number ; 361-9584. 361-9584. Also *** crimp frame ; 849-136 849-136 for smaller diameter insulation on cable 1.02 to 2.54 mm. TE Connectivity Commercial MATE-N-LOK Pin and Socket Contacts. Commercial MATE-N-LOK pin and socket contacts for *** in Commercial MATE-N-LOK connector housings. The 'clean' design of these contacts ensures there are no sharp projections to impede insertion or damage the housings. These Commercial MATE-N-LOK contacts are suitable for wire size ranges from 30 AWG to 14 AWG and are available with gold or tin plating.
Spec
- Quantity:1bag(10pieces)
- G***er : Male
- For Use With : Universal MATE-N-LOK Connector Housing
- Series : Universal MATE-N-LOK
- Minimum Wire Size mm² : 0.5mm²
- Termination Method : Crimp
- Minimum Wire Size AWG : 20AWG
- Maximum Wire Size AWG : 14AWG
- CODE No.:712-2306
