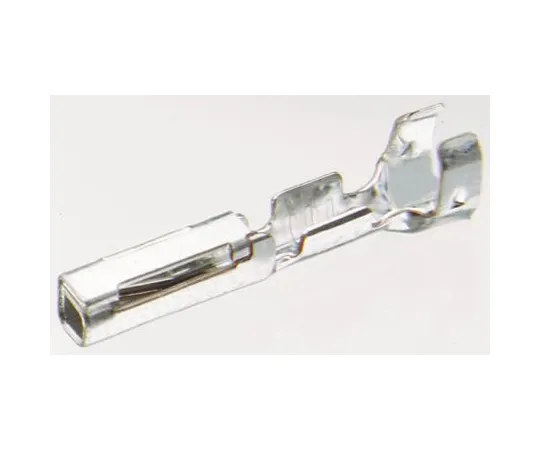

63-5001-35 TE Connectivity MULTILOCK 070 Female Crimp Terminal Contact 16AWG 175027-6 175027-6
model:
63-5001-35
brand:
TE Connectivity
Product Description
Product Model: 63-5001-35Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5001-35
Product Brand: TE Connectivity
Features
- MULTILOCK 040 ; 070 Contacts ; Tooling. These connectors manufactured from TE Connectivity offers a solid mechanical connection which is ideal for any cable connection. They are mostly ***d in automation industry. Our range offers both female and male socket type connection. You can choose from tin or gold contact plating. Features of 040 Series:. Current rating – 8A Withstand voltage: 1kVac per 1 minute Low level resistance: 10 mΩ max (initial) Overall resistance: 20 mΩ max (final) Operating temperature: -30 – 105 °C Crimp terminating contacts Snap-in fixing connector cavities. Features of 070 Series:. Current rating: 15A Withstand voltage: 1kVac per 1 minute Low level resistance: 1 mΩ max (initial) Overall resistance: 10 mΩ max (final) Operating temperature: -30 to +105 °C Crimp terminating contacts Snap-in fixing connector cavities
Spec
- Quantity:1bag(20pieces)
- G***er : Female
- For Use With : MULTILOCK 070 Connector Housing
- Series : MULTILOCK 070
- Minimum Wire Size mm² : 0.5mm²
- Termination Method : Crimp
- Contact Plating : Tin
- Maximum Wire Size AWG : 16AWG
- CODE No.:712-2188
