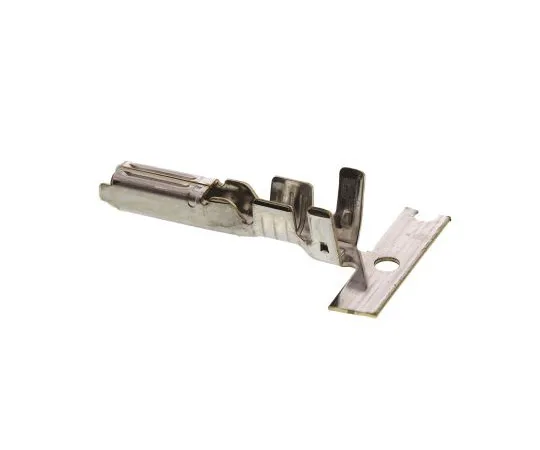

63-5000-75 TE Connectivity MULTILOCK 070 Female Crimp Terminal Contact 16AWG 173631-1 173631-1
Electronic/Electrical Parts and Controll Equipments

63-5000-75 TE Connectivity MULTILOCK 070 Female Crimp Terminal Contact 16AWG 173631-1 173631-1

model: 63-5000-75
brand: TE Connectivity

Product Description

Product Model: 63-5000-75Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5000-75
Product Brand: TE Connectivity

Features

  • MULTILOCK 040 ; 070 Contacts ; Tooling. These connectors manufactured from TE Connectivity offers a solid mechanical connection which is ideal for any cable connection. They are mostly ***d in automation industry. Our range offers both female and male socket type connection. You can choose from tin or gold contact plating. Features of 040 Series:. Current rating – 8A Withstand voltage: 1kVac per 1 minute Low level resistance: 10 mΩ max (initial) Overall resistance: 20 mΩ max (final) Operating temperature: -30 – 105 °C Crimp terminating contacts Snap-in fixing connector cavities. Features of 070 Series:. Current rating: 15A Withstand voltage: 1kVac per 1 minute Low level resistance: 1 mΩ max (initial) Overall resistance: 10 mΩ max (final) Operating temperature: -30 to +105 °C Crimp terminating contacts Snap-in fixing connector cavities

Spec

  • Quantity:1bag(50pieces)
  • G***er : Female
  • For Use With : MULTILOCK 070 Connector Housing
  • Series : MULTILOCK 070
  • Minimum Wire Size mm² : 0.5mm²
  • Termination Method : Crimp
  • Minimum Wire Size AWG : 20AWG
  • Maximum Wire Size AWG : 16AWG
  • CODE No.:712-1876
