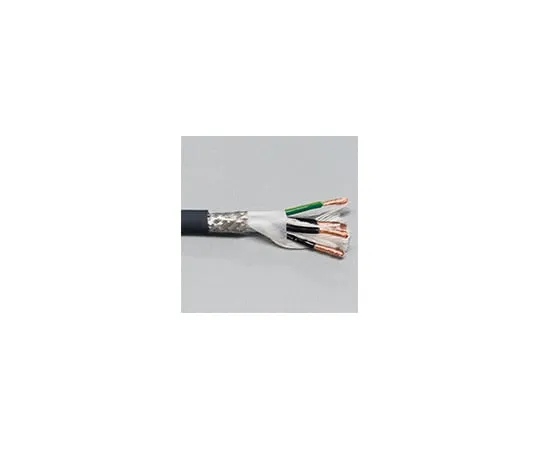

62-0733-36 Robot Cable (With Shield) EXT-3D-SB/CL3X/2586 (AWG18 Outer Diameter 6.2mm) 1m EXT-3D-SB/CL3X/25862C-AWG18
Product Description
Product Model: 62-0733-36Product Brand: FA Ubon Feature […]
Contact Us
Product Details
Product Model: 62-0733-36
Product Brand: FA Ubon
Features
- Uses high elastic TPE for insulation, high life for three-dimensional movement
- Realizes weight reduction compared to fluorine insulated cable
- Supports listing (NFPA70,79) with CL3X
- Oil and heat resistant
- Shielded
- Application: Mobile cable for articulated robot
Spec
- Cut length: 1m
- Format: EXT-3D-SB/CL3X/2586 2C-AWG18
- AWG size: AWG18
- Conductor configuration (piece/mm): 7/24/0.08
- Outer diameter: 6.2mm
- Allowable current: 13A
- Rating voltage: 600V, 105℃ rated
