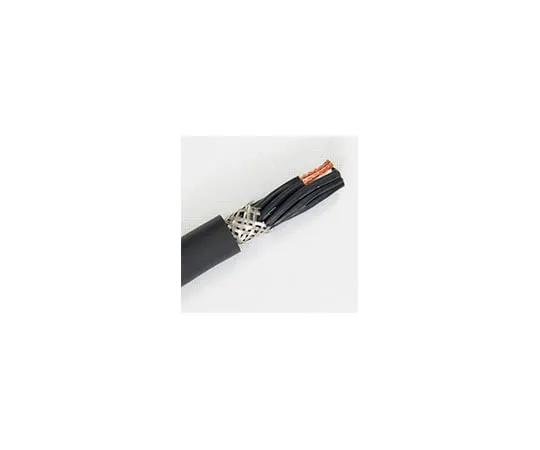

62-0732-27 Robot Cable VCT531BX-S (With Shield) (1.25Sq Outer Diameter 29.0mm) 1m VCT531BX-S1.25SQ-30C
Product Description
Product Model: 62-0732-27Product Brand: FA Ubon Feature […]
Contact Us
Product Details
Product Model: 62-0732-27
Product Brand: FA Ubon
Features
- Braided Conductors/Flexibility Resistant
- Sheath Matte
- Application: Cable Bare Wiring (for Control), Robot Wiring (for Control), Noise Resistant Wiring Locations
- * The VCT531BX-S ***s braided conductors, so the Electrical Appliance and Material Safety Law does not apply to them.
Spec
- Cut length: 1m
- Format: VCT531BX-S 1.25SQ-30C
- Conductor section size: 1.25sq
- Conductor configuration: 112 pieces/0.12mm
- Outer diameter: 29.0mm
- Allowable current: 6A
- Number of cores: 30
