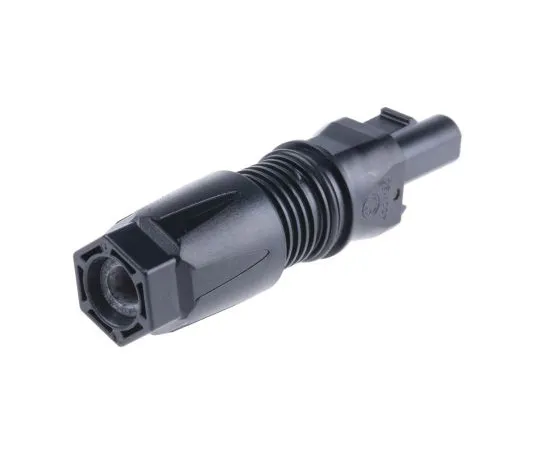

63-4999-42 Female Cable Mount Solar Panel Connector Plug, Cable CSA2.5 → 6mm², Rated At 40A, 1.1 kV PV-CF-S 2.5-6 1774674
model:
63-4999-42
brand:
Phoenix Contact
Product Description
Product Model: 63-4999-42Product Brand: Phoenix Contact […]
Contact Us
Product Details
Product Model: 63-4999-42
Product Brand: Phoenix Contact
Features
- DIN EN 50521. SUNCLIX Solar Connectors. These SUNCLIX connectors from Phoenix Contact have been designed specifically for using with photovoltaics (PV) systems, the most popular form of solar energy. These systems convert sunlight directly into electricity. The SUNCLIX connectors are supplied pre-assembled, and allow you to create both durable and reliable connections and can be fitted without specialist tools in seconds. They are ideal for fitting on the job, saving you both time and money. Features and Benefits. Connector is pre-assembled – no extra parts are needed Secure interlocking using a spring click connection Wide temperature range up to 85°C Fitted quickly without any specialist tools such as crimping tool Easy to unlock with a standard screwdriver Ideal for easy cabling High degree of flexibility Resistant to UV and varying temperatures Available in various cable sections
Spec
- Quantity:1piece
- Type : Connector
- G***er : Female
- Cable CSA : 2.5 → 6mm²
- Mounting Type : Cable Mount
- Termination Method : Spring Cage
- IP Rating : IP65, IP68
- Current Rating : 40A
- Voltage Rating : 1.1 kV
- Plug/Socket : Plug
- Maximum Operating Temperature : +85°C
- Minimum Operating Temperature : -40°C
- Series : PV-CF-S 2.5-6
- CODE No.:711-7559
