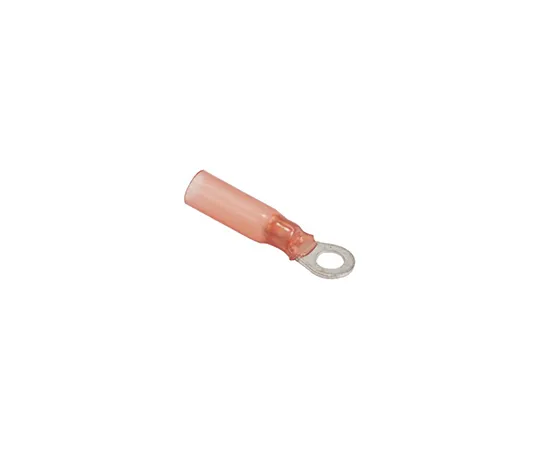

63-4997-51 TE Connectivity TERMINYL Series Insulated Crimp Ring Terminal, M6 Stud Size, 6.6mm² to 10.5mm² Wire Size, Red 324082
model:
63-4997-51
brand:
TE Connectivity
Product Description
Product Model: 63-4997-51Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4997-51
Product Brand: TE Connectivity
Features
- MIL-T-7928,Type II, Class 2. TE Connectivity TERMINYL Crimp Ring Terminals. TERMINYL crimp ring terminals designed for *** with larger wire sizes from 8 AWG to 4/0 AWG. These TERMINYL ring terminals are made from high grade conductivity copper per ASTM B-152 and tin plated per ATSM B-545 and are designed to withstand extreme vibration, shock and high temperatures. the funnel entry, colour-coded moulded nylon insulation of these TERMINYL wire connectors enables wires to be inserted easily and acts as an insulation support.
Spec
- Quantity：1piece
- Series : TERMINYL
- Insulation : Insulated
- Insulation Material : Nylon
- Inner Ring Diameter : 6.73mm
- Minimum Wire Size mm² : 6.6mm²
- Minimum Wire Size AWG : 8AWG
- Stud Size : M6
- Colour : Red
- Contact Material : Copper
- Overall Length : 36.2mm
- CODE No.:710-5496
