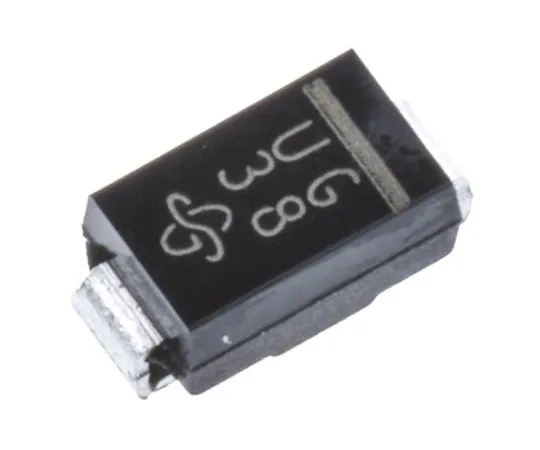

63-4997-15 Vishay 400V 1A, Silicon Junction Diode, 2-Pin DO-214AC US1G-E3/5AT US1G-E3/5AT
Product Description
Product Model: 63-4997-15Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4997-15
Product Brand: Vishay
Features
- Vishay US1A-US1M SMD Ultrafast Efficient Rectifiers. From Vishay, the US1A and US1M series are ultrafast surface mount rectifier diodes. Featuring a small, low profile package, these rectifiers can be ***d by automatic pick and place machines. Features and Benefits. US1A and US1M rectifiers feature matte tin plated leads (solderable per J-STD-002 and JESD 22 B-102 dep***ing on model). A coloured band indicates the cathode ***. These rectifiers are constructed with a glass passivated pallet chip junction that can enhance reverse voltage resistance and decrease the risk of leakage. These rectifier diodes are efficient with ultra fast reverse recovery time and low switching losses. US1A and US1M rectifiers meet MSL 1 (Moisture Sensitivity Level 1), which means the package is robust and not sensitive to moisture during reflow. Capable of managing high forward surges. Applications. These rectifiers are suited to freewheeling and high frequency applications. They can be ***d for switching mode inverters and converters in computers, telecommunications and consumer products. With an AEC-Q101 qualification these rectifiers are also suitable for *** in automotive applications.
Spec
- Quantity:1bag(25pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 400V
- Mounting Type : Surface Mount
- Package Type : DO-214AC (SMA)
- Diode Type : Silicon Junction
- Pin Count : 2
- Maximum Forward Voltage Drop : 1V
- Peak Reverse Recovery Time : 50ns
- Peak Non-Repetitive Forward Surge Current : 30A
- CODE No.:710-3910
