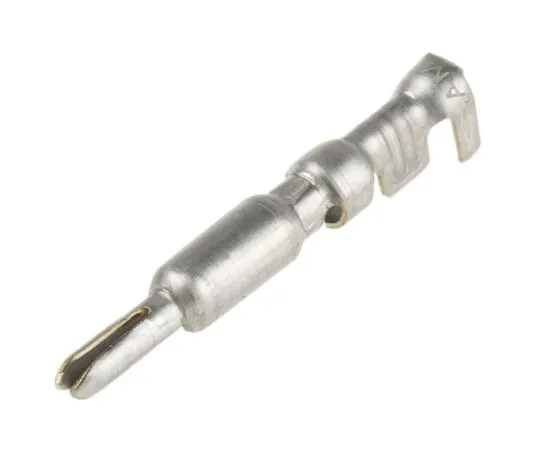

63-4996-29 TE Connectivity Universal MATE-N-LOK II Male Crimp Terminal Contact 14AWG 770250-1 770250-1
model:
63-4996-29
brand:
TE Connectivity
Product Description
Product Model: 63-4996-29Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4996-29
Product Brand: TE Connectivity
Features
- Mate-N-Lok Contacts for Sealed Connectors. Features:. The male contact comes in two versions: the rigid version is ***d with 2 to 4 way packages split version is recomm***ed for 6 to 15 way packages, to reduce the connector insertion force Blanking pins are provided to block off holes not containing contacts PCB Headers: 12 Voltage Rating: 600 Vac/dc Temperature Range: -55 to +105 °C Mating Cycles: 50 Insulation Material UL94V-2: Natural polyamide Insulation Material UL94V-0: White opaque Nylon 6.6 Insulation Resistance: 1000 MΩ Contact Resistance: 3.5 mΩ A tool designed for the Mate-N-Lok sealed connector is available separately see stock no. ; 366-2055 366-2055. Application:. Consumer Electronics Commercial HVAC Power Supplies Portable Devices Lighting
Spec
- Quantity:1bag(10pieces)
- G***er : Male
- For Use With : Universal MATE-N-LOK II Connector Housing
- Series : Universal MATE-N-LOK II
- Minimum Wire Size mm² : 0.5mm²
- Termination Method : Crimp
- Contact Plating : Tin
- Maximum Wire Size AWG : 14AWG
- CODE No.:709-9808
