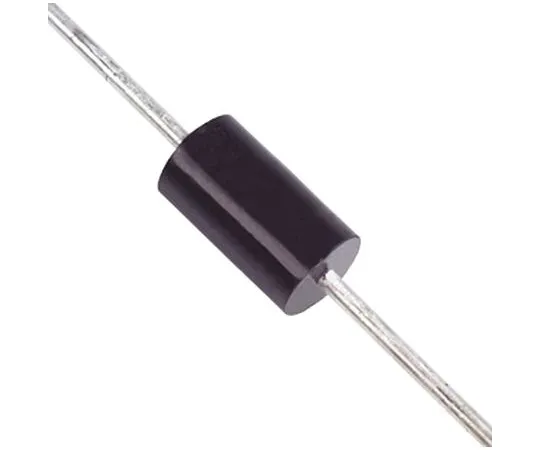

63-4993-58 Vishay 1300V 3A, Silicon Junction Diode, 2-Pin DO-201AD BY255P-E3/54 BY255P-E3/54
Product Description
Product Model: 63-4993-58Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4993-58
Product Brand: Vishay
Features
- Vishay BY251P-BY255P General Purpose Rectifiers. The Vishay BY251P-BY255P series of general purpose rectifiers in a DO-201AD epoxy package. These 3A rectifiers feature tin leads measuring 25.4mm and a body measuring 9.5 x 5.3(dia)mm. Features ; Benefits: Low forward voltage drop Low leakage current High forward surge capability Where are they ***d? The BY251P-BY255P rectifiers are ideal for rectification of power supplies, inverters, converters and freewheeling diodes applications. These rectifiers are for general purpose *** and suitable for a wide range of applications. What is the operating temperature? -55°C to +150°C Peak reverse repetitive voltages: BY251P - 200V BY252P - 400V BY253P - 600V BY254P - 800V BY255P - 1300V
Spec
- Quantity：1bag(25pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 1300V
- Mounting Type : Through Hole
- Package Type : DO-201AD
- Diode Technology : Silicon Junction
- Pin Count : 2
- Maximum Forward Voltage Drop : 1.1V
- Peak Reverse Recovery Time : 3µs
- Diameter : 5.3mm
- Peak Non-Repetitive Forward Surge Current : 150A
- CODE No.:708-8000
