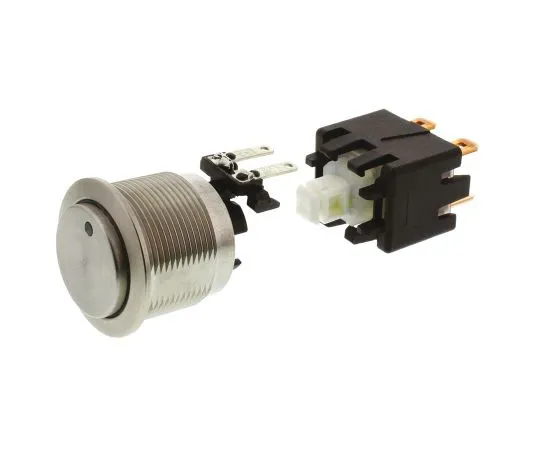

63-4992-74 Schurter Double Pole Double Throw (DPDT) Latching Blue LED Push Button Switch, IP64 (Front); IP00 (Rear), 22 (Dia.)mm, 1241.6833.1124000
Product Description
Product Model: 63-4992-74Product Brand: Schurter Featur […]
Contact Us
Product Details
Product Model: 63-4992-74
Product Brand: Schurter
Features
- ENEC, UL, CSA. Point illuminated types require suitable series resistor; Ring illuminated types incorporate resistors for 24Vdc operation. Anti-Vandal M19 ; M22 Push Button Switches - MSM LA Series (Latching). Robust pushbutton switch suitable for *** in harsh environments - IK07 shock resistance (DIN EN 50102) IP64 sealed stainless steel housing and latching (push-on, push-off) actuator Actuator with 10N operating force and 4.5mm travel - protrudes 3.7mm above panel in off state Quick connect terminals Long life - up to 150,000 mechanical operations Non-illuminated or red, green or blue LED point or ring illuminated versions, available in 19 or 22mm Ø panel cut outs Switching status optically visible - illuminated viewing angle of 180°
Spec
- Quantity：1piece
- Switch Operation : Latching
- Mounting Type : Panel Mount
- Illuminated : Yes
- Contact Configuration : Double Pole Double Throw (DPDT)
- Panel Cut Out Size : 22 (Dia.)mm
- Panel Cut Out Diameter : 22mm
- LED Colour : Blue
- IP Rating : IP64 (Front); IP00 (Rear)
- Actuator Colour : Natural
- Voltage Rating : 125/250V ac
- Contact Current Rating : 12 A @ 250 V ac
- Actuator Shape : Round
- Terminal Type : Tab
- Actuator Type : Button
- CODE No.:708-2860
