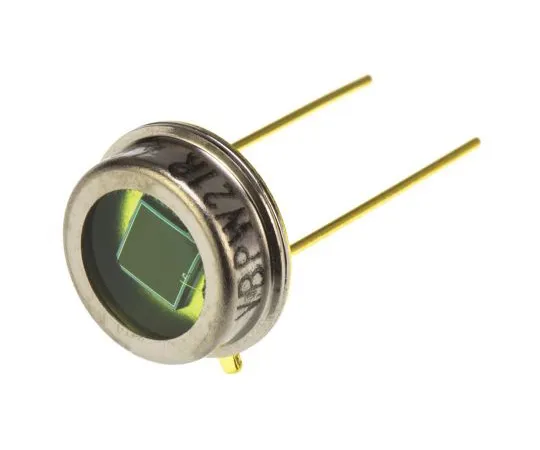

63-4992-69 Vishay, BPW21R Visible Light Si Photodiode, 50 °, Through Hole TO-5 BPW21R
Electronic/Electrical Parts and Controll Equipments

63-4992-69 Vishay, BPW21R Visible Light Si Photodiode, 50 °, Through Hole TO-5 BPW21R

model: 63-4992-69
brand: Vishay

Product Description

Product Model: 63-4992-69Product Brand: Vishay Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4992-69
Product Brand: Vishay

Features

  • BPW20 and BPW21 Series Photodiodes. The BPW20 and BPW21 series of silicon photodiodes, from Vishay Semiconductor, are in standard TO-5 packages. These packages have been hermtically sealed, making the BPW20 and BPW21 ideal for high precision linear applications. Suitable applications for the BPW20 and BPW21 photodiodes include; sensors for light measuring in cameras, photometers, colour analysers, exposure meters and other general medical/industrial measuing and control applications.. Features of the BPW20 and BPW21 photodiodes: TO-5 package with flat glass lens 8.13 mm diameter Radiant sensitive area: 7.5 mm² High photo sensitivity Angle of half intensity: 50° Low dark current High linearity

Spec

  • Quantity:1piece
  • Spectrums Detected : Visible Light
  • Wavelength of Peak Sensitivity : 565nm
  • Package Type : TO-5
  • Mounting Type : Through Hole
  • Number of Pins : 2
  • Diode Material : Si
  • Minimum Wavelength Detected : 420nm
  • Maximum Wavelength Detected : 675nm
  • Length : 9.1mm
  • Width : 9.1mm
  • Height : 3.1mm
  • Polarity : Forward
  • CODE No.:708-2813
