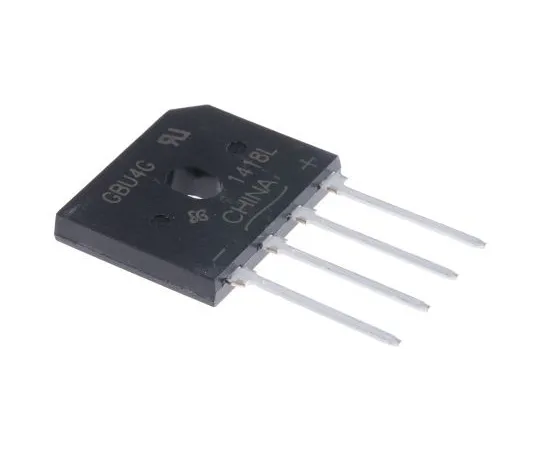

63-4992-57 Vishay GBU4G-E3/51, Bridge Rectifier, 4A 400V, 4-Pin GBU GBU4G-E3/51
Product Description
Product Model: 63-4992-57Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4992-57
Product Brand: Vishay
Features
- UL file E54214. SIL PCB Mounting, GBU Series, Vishay Semiconductor. GBU series bridge rectifiers in SIL PCB Mounting package from Vishay Semiconductor. Glass passivated junction High surge current capability High case dielectric strength of 1500Vrms Soldering pins for Printed Circuit Board (PCB) through-hole mounting
Spec
- Quantity：1bag(5pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 4A
- Peak Reverse Repetitive Voltage : 400V
- Mounting Type : Through Hole
- Package Type : GBU
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 150A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1V
- Peak Reverse Current : 5µA
- Length : 22.3mm
- Dimensions : 22.3 x 3.56 x 18.8mm
- CODE No.:708-2709
