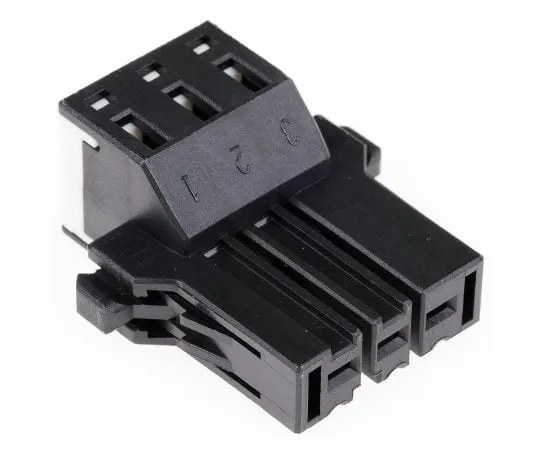

63-4991-91 JST J300 Female Connector Housing, 5.08mm Pitch, 3 Way, 1 Row 03JFAT-SBYGF-I
Electronic/Electrical Parts and Controll Equipments

63-4991-91 JST J300 Female Connector Housing, 5.08mm Pitch, 3 Way, 1 Row 03JFAT-SBYGF-I

model: 63-4991-91
brand: JST

Product Description

Product Model: 63-4991-91Product Brand: JST Features UL […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4991-91
Product Brand: JST

Features

  • UL 94V-0. J300/J-FAT-S-i Spring Terminal Connectors. These 5.08mm pitch disconnectable J-FAT-S-i connectors have an internal spring lock mechanism termination to join the connector to the wires. This removes the need to have a separate crimp terminal, simply strip the wire and insert it into the connector whilst deflecting the locking spring with the finger fri***ly hand tool; J-FAT-OT, sold separately. Mates with J300 Series/J320 headers stock number ; 707-9016 707-9016 typical Normal (e.g. **JFAT-S A *GF-*) and Reverse (e.g. **JFAT-S B *GF-*) types allow two single row connectors to be ***d in double row M type headers stock number ; 707-9044 707-9044 typical Polarization is achieved by selecting corresponding Key Codes X or Y (e.g. **JFAT-S* Y GF-*) Wire sizes are 14-28 AWG The J-FAT-Open Tool is ***d for the insertion or disconnection of a wire into the connector

Spec

  • Quantity:1piece
  • Number of Contacts : 3
  • Number of Rows : 1
  • Pitch : 5.08mm
  • G***er : Female
  • Mounting Type : Cable Mount
  • Series : J300
  • Body Orientation : Straight
  • Length : 29.16mm
  • Depth : 29mm
  • Housing Material : PBT
  • CODE No.:707-9003
