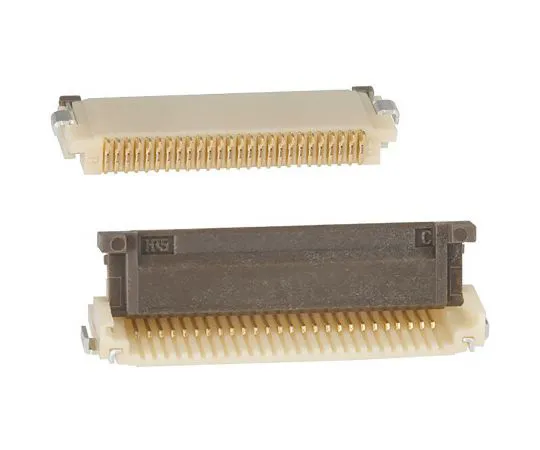

63-4990-57 Hirose FH12 0.5mm Pitch 26 Way Right Angle SMT Female FPC Connector, ZIF Top Contact FH12A-26S-0.5SH(55)
Electronic/Electrical Parts and Controll Equipments

63-4990-57 Hirose FH12 0.5mm Pitch 26 Way Right Angle SMT Female FPC Connector, ZIF Top Contact FH12A-26S-0.5SH(55)

model: 63-4990-57
brand: Hirose

Product Description

Product Model: 63-4990-57Product Brand: Hirose Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4990-57
Product Brand: Hirose

Features

  • Hirose FH12 Series 0.5 mm FPC/FFC Connectors. FH12 series ZIF (zero insertion force) FPC/FFC connectors with a 0.5mm pitch. These FPC connectors feature a one-touch rotating ZIF actuator for easy operation. Once fully closed the actuator produces a tactile click to confirm that mating is complete. FH12 series FPC/FFC connectors with their one-touch ZIF rotating actuator occupy less space on the PCB than versions with slide locking mechanisms enabling high density mounting. These FH12 series FPC/FFC connectors are available with a bottom contact configuration (FH12) or a top contact configuration (FH12A). Features and Benefits. One-touch rotating ZIF actuator Tactile click to confirm mating PCB space saving design Supports high density mounting Top and bottom mounting contact configurations. Applications. Suitable for *** in a broad range of applications such as mobile phones, GPS, ****book PCs, data terminals, LCD TVs, digital and video cameras and other small hand held devices that connect to an LCD

Spec

  • Quantity:1bag(10pieces)
  • Number of Contacts : 26
  • Contact Material : Phosphor Bronze
  • Pitch : 0.5mm
  • Mounting Type : Surface Mount
  • G***er : Female
  • Termination Type : ZIF Top Contact
  • Body Orientation : Right Angle
  • Current Rating : 500mA
  • Voltage Rating : 50 V ac
  • Series : FH12
  • Number of Rows : 1
  • Contact Plating : Gold
  • Housing Material : PPS·Polyamide
  • CODE No.:707-6739
