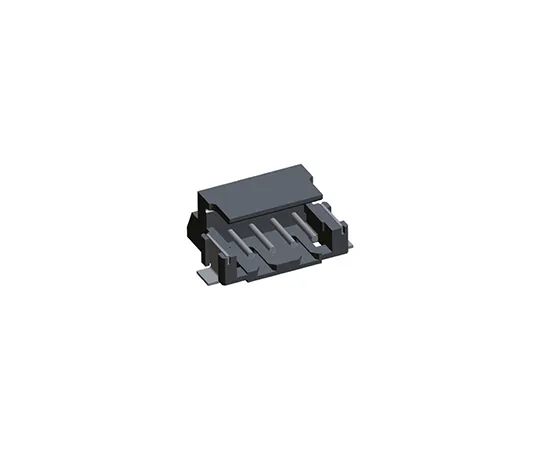

63-4988-63 TE Connectivity AMP CT, 4 Way, 1 Row, Right Angle PCB Header 292173-4
model:
63-4988-63
brand:
TE Connectivity
Product Description
Product Model: 63-4988-63Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4988-63
Product Brand: TE Connectivity
Features
- Part numbers 292173-X and 292174-X have PCB mounting bosses. TE Connectivity AMP CT 2 mm Box Type PCB SMT Headers. AMP CT 2 mm fully shrouded box type PCB SMT headers with a miniature design. The fully shrouded housings of these AMP CT SMT headers protect the contacts from scooping during the mating and unmating of the connector. These AMP CT headers have polarization and mating retention features for an accurate and secure connection to the mating cable connector. Solder tabs on either side of the connector housing **** provide a secure connection to the PCB. Versions of these AMP CT SMT headers feature PCB locating bosses which enable accurate alignment of the header onto the PCB. These AMP CT 2 mm SMT headers are available with vertical or right angle mounting configurations. Features and Benefits. Miniature design Fully shrouded for protection against scooping Polarization and mating retention features Solder tabs for secure connection to PCB Versions available with PCB locating bosses for accurate alignment on PCB. Applications. These AMP CT 2 mm connectors are suitable for *** in a wide range of applications and have proven wire harness making capability. Applications include business equipment, industrial machines, PCs, printers, C-TV, audio and Air Conditioning.
Spec
- Quantity:1bag(5pieces)
- Series : AMP CT
- Pitch : 2mm
- Number of Contacts : 4
- Number of Rows : 1
- Body Orientation : Right Angle
- Shrouded/Unshrouded : Shrouded
- Connector System : Wire to Board
- Termination Method : Solder
- Type : Wire to Board
- Current Rating : 2A
- CODE No.:706-7864
