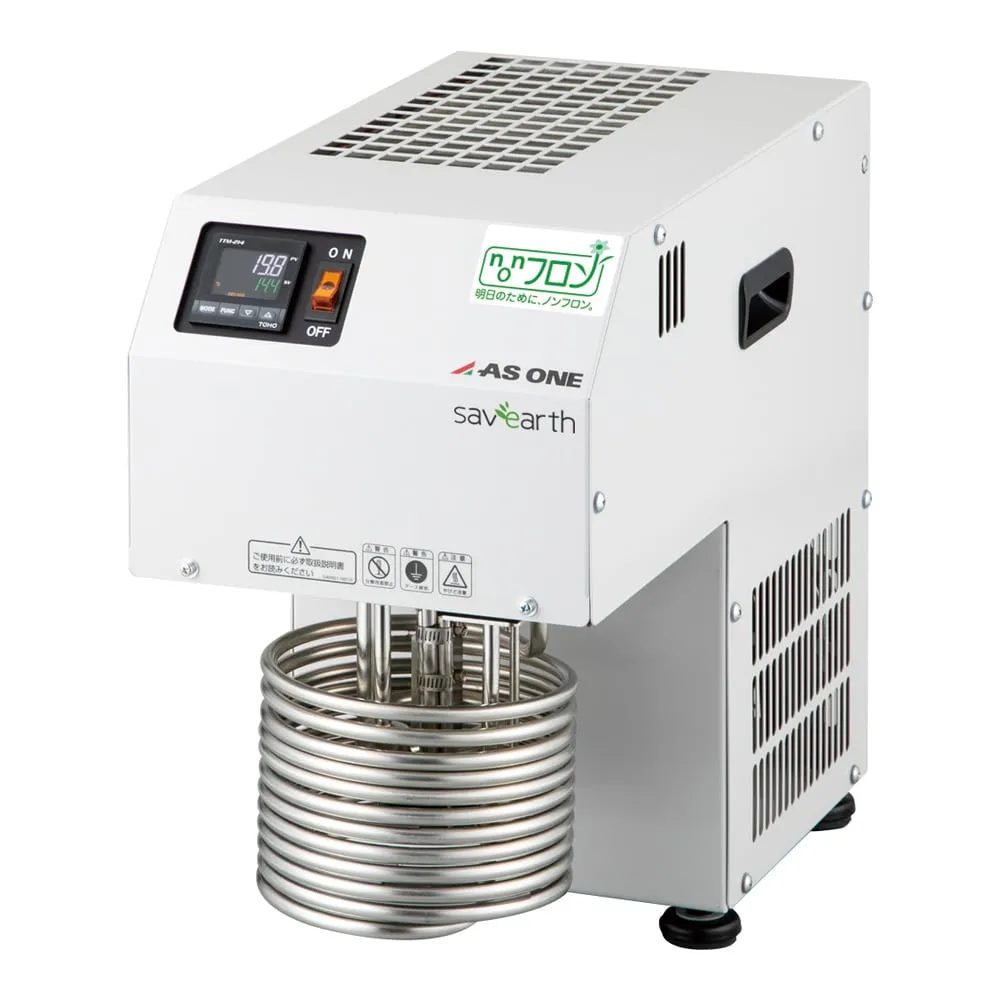

4-4566-01 Non-Flon Multi-Thermo LCM250AH
Product Description
Product Model: 4-4566-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-4566-01
Product Brand: AS ONE Corporation
Features
- Just add a cooling coil to the water tank for heating and cooling.
- Stirring function is standard.
- It ***s R1234yf, an environmentally fri***ly non-CFC refrigerant with an ozone depletion potential of 0 and a global warming potential of less than 1.
- Since it is not subject to the CFC Emission Control Law, periodic inspections, record keeping, and CFC disposal costs are no longer required.
- It is equipped with various safety protection functions.
Spec
- External dimensions (mm): 230 x 415 x 390 * External dimensions do not include protrusions.
- Number of pieces: 1
- Liquid temperature range: -10 to + 60 degrees C
- Cooling capacity (50/60 Hz): 350 W/370 W/at 20 deg. C, 105 W/145 W/at -10 deg. C * Ambient temperature: 32 deg. C, ***d solution When operating in ethylene glycol aqueous solution
- Temperature control range: +/- 0.2 degrees C * Ambient temperature: 32 degrees C, set temperature: 20 degrees C, water tank (S -1), reference value when using 12 L of ethylene glycol aqueous solution. It dep***s on the water tank, liquid amount, set temperature and liquid type.
- Display method: PV/SV digital 2-step display (0.1 degrees Celsius)
- Temperature control method: PID control
- Temperature sensor: Temperature resistor (Pt 100 ohm)
- Type of solution ***d: fresh water, ethylene glycol aqueous solution
- Refrigerant: R 1234 yf
- Stirring Function: Jet Stirring
- Heating heater: 1000 W
- Protective devices: Ground fault breaker, compressor motor protector, high pressure switch, upper temperature anomaly detection
- Maximum operating current (50/60 Hz): 13.2/12.8 A
- Power supply: 100 VAC 50/60 Hz
- Weight: 18 kg
- *A water tank is not included (recomm***ed: 1 -4163 - 01).
