Features

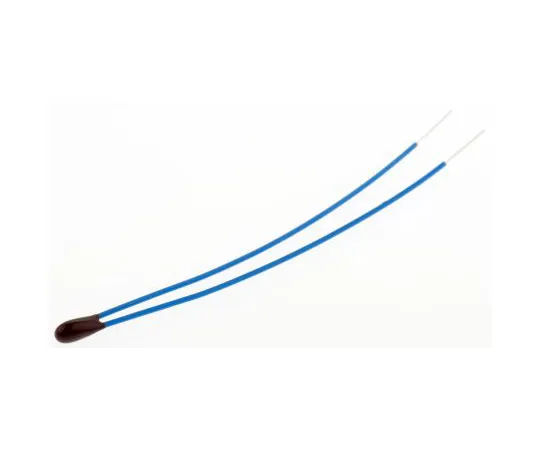

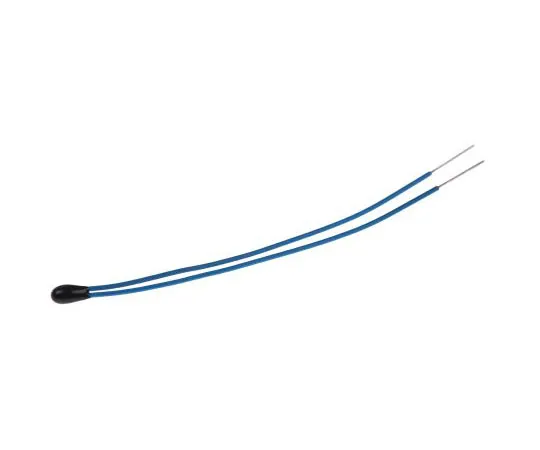

• Beta values shown are for the temperature range 25-100°C. Epcos Miniature Sensor S861 Series. From Epcos, this S861 Series of miniature encapsulated NTC bead thermistors and feature high measuring accuracy and a fast thermal response. The S861 series thermistors are for temperature sensing and measurement applications. Features and Benefits: Resistance tolerance ±5% J40 type, ±1% F40 type Fast thermal response High measuring accuracy Epoxy resin encapsulation PTFE insulated silver-plated nickel wire leads Maximum power dissipation: 60mW @ 25°C Dissipation Factor (In Air): 1.5 mW/C (Approx.) Thermal time constant (In Air): 15 seconds (Approx.) Body Size: 2.41Ø x x 6.5mm
